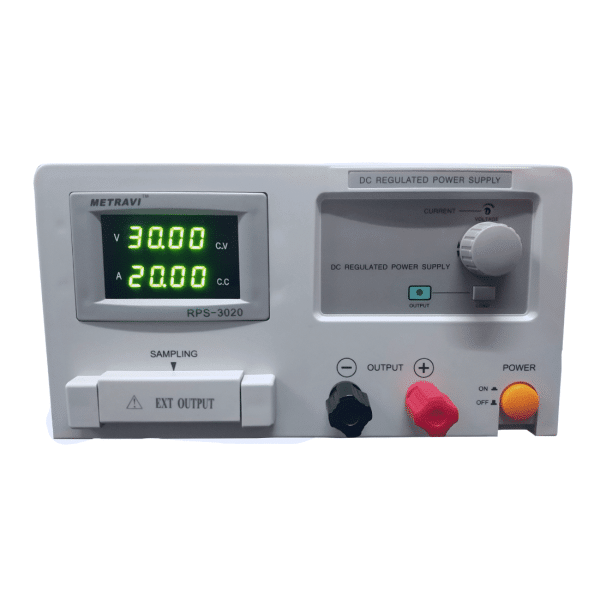

RPS-3020 DC Regulated Power Supply
₹36,108.00 including GST @18%
DC Regulated Power Supply with Single Output and LED Display of Variable 0 – 30V / 0 – 20A DC utilising SMT technology
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
DC Regulated Power Supply with Single Output and LED Display of Variable 0 – 30V / 0 – 20A DC utilising SMT technology
Additional information
| Model | |
|---|---|
| Brand | |
| Warranty | |
| Colour | |
| Display | |
| SMT Technology | SMT Technology |
| No of Channel | Single |
| LED Indication | Indicates the presence of current, Indicates the presence of voltage |
| Voltage Regulation | High Precision Voltage Regulation |
| Current Regulation | Progressive Current Regulation |
| Input Voltage | 220V / 110V |
| Accuracy | ±5% |
| Variable Output Current | 0 to 20A |
| Variable Output Voltage | 0 to 30V |
| Source Regulation | CC ≤5*10^-4 + 5mA, CV ≤5*10^-4 + 2mV |
| Load Regulation Rate | CC ≤5*10^-4 + 5mA, CV ≤5*10^-4 + 2mV |
| Ripple and Noise | CC ≤15mV, CV ≤1.5mV |
- Utilizes SMT Technology
- Attractive Digital Display showing Voltage and Current
- High Precision Voltage Regulation
- Progressive Current Regulation
- Dual Terminal System: Safety test style or expanded screw terminals.
- Overload and Short Circuit Protection
- Rugged Reinforced Metal Frame Construction.
- Output Polarity: Positive and Negative
- Input: 230V AC 50Hz
- Variable Output Voltage: 0 – 30V DC
- Variable Output Current: 0 – 20A DC
