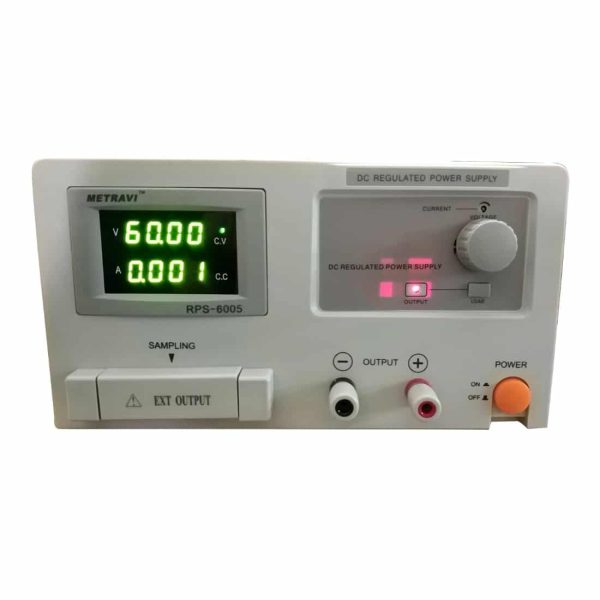

RPS-6005 DC Regulated Power Supply
₹25,326.00 including GST @18%
DC Regulated Power Supply with Single Output and Backlit LCD Display of Variable 0 – 60V / 0 – 5A DC utilising SMT Technology
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
DC Regulated Power Supply with Single Output and Backlit LCD Display of Variable 0 – 60V / 0 – 5A DC utilising SMT Technology
Additional information
| Model | |
|---|---|
| Brand | |
| Warranty | |
| Colour | |
| Display | |
| No of Channel | Single |
| SMT Technology | SMT Technology |
| Voltage Regulation | High Precision Voltage Regulation |
| Current Regulation | Progressive Current Regulation |
| Input Voltage | 220V / 110V |
| Accuracy | ±10% |
| Variable Output Current | 0 to 5A |
| Variable Output Voltage | 0 to 60V |
| Line Regulation Rate | CC ≤0.05% + 5mA, CV ≤0.02% + 2mV |
| Load Regulation Rate | CC ≤0.05% + 5mA, CV ≤0.02% + 2mV |
| Ripple and Noise | CC ≤2mA, CV ≤0.5mV |
| Operational Modes | Constant Current Mode, Constant Voltage Mode |
| LED Indication | Indicates the presence of current, Indicates the presence of voltage |
| Cooling Fan | Built-in thermo-sensor-activated cooling fan |
| Keyboard Lock Function | Keyboard lock function to prevent operator errors |
| Button Lock Function | Button Lock |
- Utilizes SMT Technology
- Attractive Digital Display showing Voltage and Current
- High Precision Voltage Regulation
- Progressive Current Regulation
- Dual Terminal System: Safety test style or expanded screw terminals.
- Overload and Short Circuit Protection
- Rugged Reinforced Metal Frame Construction.
- Output Polarity: Positive and Negative
- Input: 230V AC 50Hz
- Variable Output Voltage: 0 – 60V DC
- Variable Output Current: 0 – 5A DC
View Catalogue: Metravi-RPS-3005 RPS-6005 RPS-3002-2 RPS-3002-3 RPS-3005-2 RPS-3005-3 DC Regulated Power Supply Combined Catalogue
