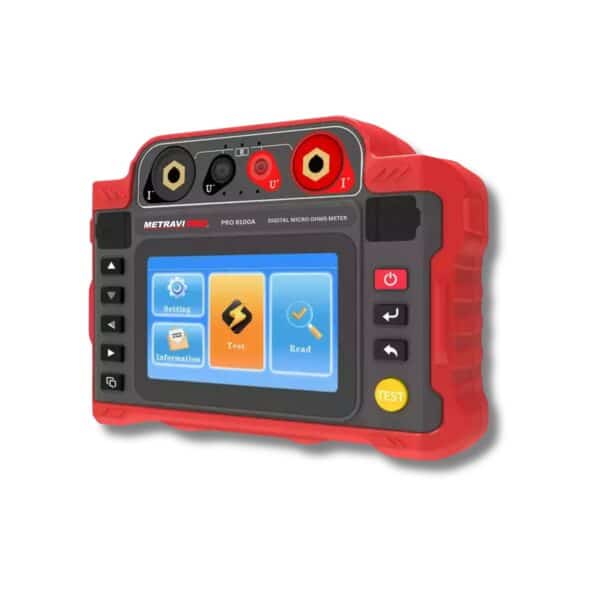

PRO 8100A 100A Micro Ohms Meter
New Launch!!
Test current of 100A. Allows wetting continuous high current testing time (10s, 20s, 30s, 40s, 50s, 60s), achieves fast test time of less than one second in rapid testing mode, ensuring high precision, stability, and intelligence even under strong interference conditions. Features 5-inch colour touchscreen LCD display, With USB PC interface cable and software and rechargeable battery.
- Description
- Additional information
- SPECIFICATIONS
- CATALOGUE
- Reviews (0)
Description
New Launch!!
The Metravi Pro 8100A 100A Micro Ohms Meter, also known as Circuit Resistance Testers, is designed with a high-speed microcontroller, integrating high-precision A/D converters, digital measurement technology, anti-power frequency interference technology, and advanced programmable current source technology.
It generates ripple-free DC current using a large-capacity rechargeable lithium battery, with a maximum output of 100A.
The output current can be finely adjusted in steps of 2.5A, offering up to 87 current levels for multi-level testing. Additionally, it allows setting continuous high-current testing times (10s, 20s, 30s, 40s, 50s, 60s) and achieves fast test time of less than one second in rapid testing mode, ensuring high precision, stability, and intelligence even under strong interference conditions.
The instrument features a 5-inch colour LCD display with intuitive operation interface. It also comes equipped with standard resistors, allowing for self-checking of accuracy before formal testing.
Features:
- Wide measurement range
- Large data storage capacity
- Strong interference resistance
- Simple operation
- Portability due to compact size, and ease of carrying
- Can also be equipped with a printer for data printing
Additional information
| Brand | |
|---|---|
| Colour | |
| Warranty | |
| Model |
- Test Current: 5A / 10A / 30A / 50A / 80A / 100A
- Measuring Range: 0.10μΩ~3500mΩ
- Min Resolution: 0.01μΩ
- Accuracy: ±(0.15%+0.5μΩ)
- Test Mode: Four-wire method
- Test Interface: I+(current positive); I-(current negative); U+(voltage positive); U-(voltage negative)
- Test Time:
- ≤100A: Quick test, 10s, 20s, 30s, 40s, 50s, 60s
- >100A: Quick test
- Display: 5-inch Interactive Touchscreen (854x 480 px) full colour 108×65mm LCD
- Interface: Bluetooth (Smartphone), USB (PC)
- App: Smartphone App
- Data Logging: 999 groups with Data Lookup
- Printer: Optional
- Power Supply: DC 11.1V 4200mAh Large capacity, rechargeable, lithium battery
- Battery Indication: Battery power is displayed in real time
- Auto Power-off: You can set the automatic shutdown between 1 to 30 minutes
- Safety & Certifications:
- IEC61010-1
- CATIII 600V
- Pollution Level 2
- JJG166-1993 “DC Resistor Verification Regulations”
- DL/T967-2005 “Loop Resistance Tester and DC resistance rapid tester verification regulations”

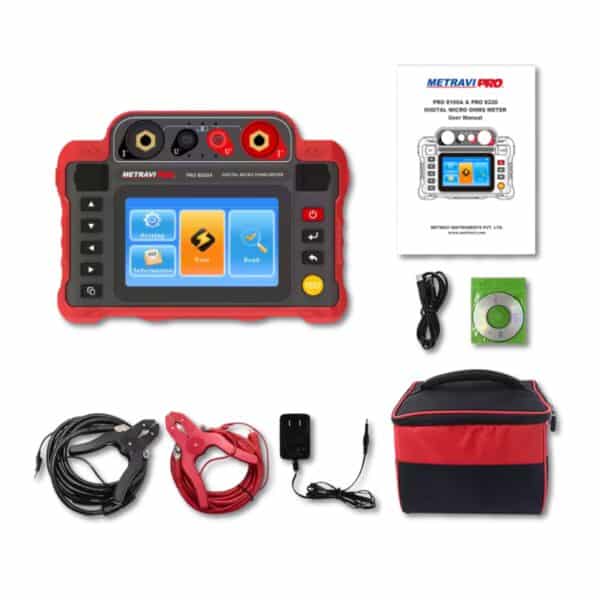

- Accessories: Test Leads, USB Cable, Software CD, Charger, User Manual, Carrying Case
