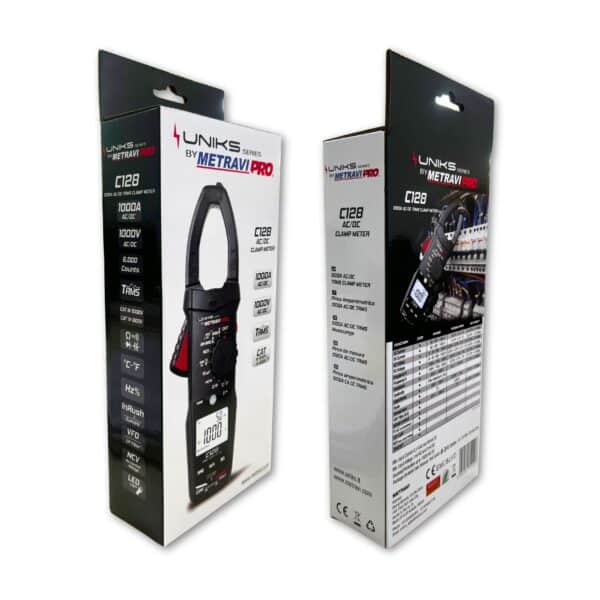

Pro Uniks C128 Digital TRMS AC/DC Clamp Meter
₹14,175.00 including GST @18%
New Launch!!
6000 Counts, Backlit 2″ LCD, LED Flashlight, Auto-ranging & Manual, Auto Power Off, T-RMS, Non-contact Voltage detection, Data Hold, AC/DC Voltage, AC/DC Current up to 1000A, InRush Current, VFD Filter, LoZ, Capacitance, Frequency, Temperature, Resistance, Continuity & Diode test. CATIV 600V, CATIII 1000V. Made in Europe.
- Description
- Additional information
- SPECIFICATIONS
- CATALOGUE
- Reviews (0)
Description
New Launch!!

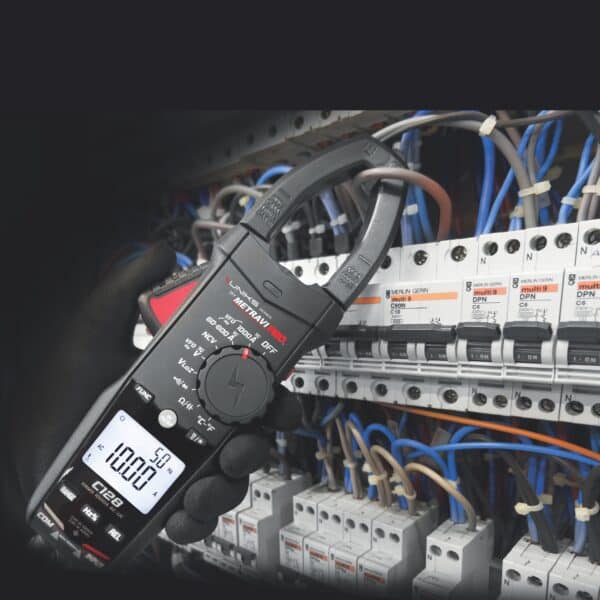

The Metravi Pro Uniks C128 Digital TRMS AC/DC Clamp Meter is designed for use in both industrial and civil sectors It carries out TRMS measurements of voltage up to 1000V AC/DC* and current from 0.1A up to 1000A AC/DC.
The modern design, the fluid mechanics and the 2″ DUAL DISPLAY function facilitates work in the field, making it the most complete instrument in the range. It is equipped with a built-in voltage detector that turns on if placed near live conductors and an integrated torch that allows you to work even in very dark places.
Made in Europe. Used in India.
Features of the Metravi Pro Uniks C128 Digital TRMS AC/DC Clamp Meter :
- DC/AC TRMS voltage up to 1000V
- DC/AC TRMS current up to 1000A
- Minimum current value 0.1A
- InRush Current
- Voltage measurement with low impedance VLoz
- Voltage and Current VFD Filter
- Resistance and Continuity test with buzzer
- Capacity and Frequency
- Duty cycle
- Test Diodes
- Temperature
Additional information
| Brand | |
|---|---|
| Colour | |
| Model | |
| Warranty | |
| DC Current Resolution | 0.01A/0.1A/1A |
| DC Current Accuracy | ±3% |
| DC Voltage | 6A/60A/600A/1000A |
| DC Voltage Resolution | 0.001V/0.01V/0.1V/1V |
| DC Voltage Accuracy | ±0.5% |
| Current frequency | 100Hz/1000 Hz/ 10Kz |
| Current Frequency Resolution | 0.01Hz/ 0.1Hz / 0.001kHz |
| Current Frequency Accuracy | ±1% |
| Duty Cycle Range | 1% to 99% |
| Duty Cycle Resolution | 0.1% |
| Duty Cycle Accuracy | ±3% |
| Voltage Frequency | 100Hz/1000Hz /10kHz |
| Voltage Frequency Resolution | 0.01Hz/ 0.1Hz / 0.001kHz |
| Voltage Frequency Accuracy | ±1% |
| Diode Range | 2.000V |
| Diode Resolution | 0.001V |
| Resistance Range | |
| Resistance Resolution | 0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ/0.001MΩ/0.01MΩ |
| Resistance Accuracy | ±1.0% |
| Capacitance Range | |
| Capacitance Resolution | 0.01nF/0.1nF/1nF /10nF /100nF/1uF /10uF |
| Temperature Range | |
| Temperature Resolution | 1℃/2℉ |
| Temperature Accuracy | |
| Sampling Time | 3 times/sec |
| Power Supply | 1.5V, 3 x AA alkaline batteries |
| Low Battery Indication | |
| LED Indication | yes |
| Over Range Indication | |
| Encloser | Double Insulation |
| Pollution Level | Level II |
| Display | 2 inch Backlit LCD, 6000 Counts, Dual Display with analog bargraph |
| Certifications | |
| DC Current | 60A/600A/1000A |
- TRMS AC Current: 0-60A/600/1000A
- Accuracy: ±2.5% reading +8 digits
- DC Current: 0-60A/600/1000A
- Accuracy: ±3% reading +10 digits
- TRMS AC Voltage: 0-6V/60/600/1000V
- Accuracy: ±0.8% reading +5 digits
- DC Voltage: 0-6V/60/600/1000V
- Accuracy: ±0.5% reading +5 digits
- Resistance: 600Ω/6kΩ/60/600/6MΩ/60MΩ
- Accuracy: ±1.0% reading +3 digits
- Capacitance: 60.00nF/6.000/600.0uF/60.00/600.0/6.000mF/60.00mF
- Accuracy: ±4.0% reading +3 digits
- K-type Temperature: -20° to 1000°C / -4° to 1832°F
- Accuracy: ±2.0% reading +2 digits
- Frequency: 100Hz/1000/10kHz
- Non-contact Voltage detection
- InRush Current
- Voltage measurement with low impedance VLoz
- Voltage and Current VFD Filter
- Duty Cycle
- Diode Test
- Polarity Test
- Auto and Manual Range
- Bandwidth for TRMS measurements of 1KHz
- Relative measurements
- Display: 6000 Counts 2 inch Backlit LCD
- REL function
- Data Hold
- Sampling Time: 3 times/second
- Power supply: 1.5V AAA battery ×3
- Low battery indication
- Auto Power-off
- Built-in LED Flashlight
- Over Range indication
- Overload Protection
- Input protection from over-voltage 1000V AC/DC RMS
- Certifications: CATIV 600V, CATIII 1000V
View Catalogue: Metravi Pro Uniks C128 1000A TRMS AC DC Clamp Meter Catalogue
