Description

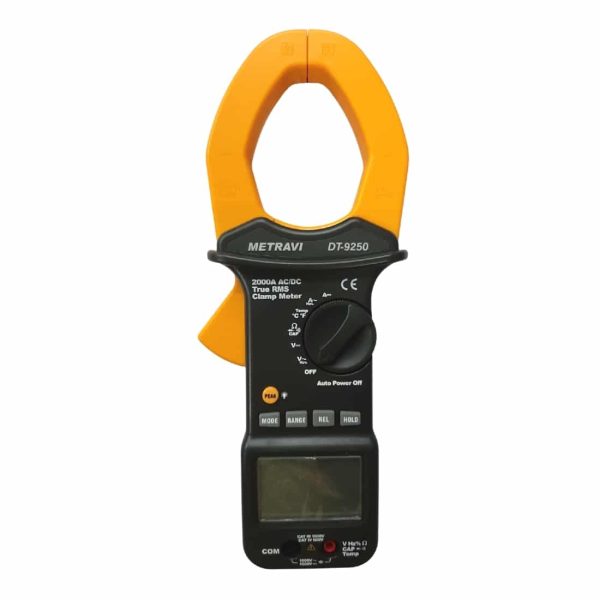

The Metravi DT-9250 is a Digital AC TRMS/DC clamp meters with big jaw dia which can be used anywhere that high current and voltage measurements are needed. The unique feature of the DT-9250 is that it can measure Frequency through the Clamp Jaw, so it can measure the frequency at high current as well. It becomes very safe to take frequency measurements as you do not need to touch high current lines with probes to get frequency measurements.
Additional information
| Model | |
|---|---|
| Brand | |
| Warranty | |
| T-RMS | |
| AC or AC/DC | |
| Auto Power Off | |
| Auto Ranging | Auto Ranging |
| Data Hold | |
| Peak Hold | Peak Hold |
| Jaw Dia | |
| Display | |
| Duty Cycle Range | 0.1% to 99.9% |
| Diode & Continuity | |
| Low Battery Indication | |
| Overload Indication | Overload Indication |
| Sampling Time | 2 times/sec |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | 9V |
| No of Batteries | 1 |
| DC Voltage Range | |
| DC Voltage Accuracy | ±1% |
| AC Voltage Range | |
| AC Voltage Accuracy | ±1.2% |
| AC Current Range | |
| AC Current Accuracy | ±3.0% |
| DC Current Range | |
| DC Current Accuracy | ±3.0% |
| Resistance Range | |
| Resistance Accuracy | ±1.0% |
| Temperature Range | |
| Temperature Accuracy | |
| Peak Current | 400A/2000A |
| Capacitance Range | |
| Capacitance Accuracy | ±3.5% |
| DC Voltage Resolution | 0.1mV to 1V |
| AC Voltage Resolution | 1mV to 1V |
| AC Current Resolution | 100mA to 1A |
| DC Current Resolution | 100mA to 1A |
| Resistance Resolution | 0.1Ω to 10kΩ |
| Temperature Resolution | 0.1°C |
| Capacitance Resolution | 0.1nF to 10μF |
| Certifications |
- Auto Power off
- Auto/Manual Ranging
- Data Hold
- Peak Hold
- True RMS
- Clamp Jaw Dia: 2″ (52mm) approx
- Display: 3-3/4 digits (4000 counts) Backlit LCD
- DC Voltage: 400mV/4V/40V/400V/1000V
- Accuracy: ± (1% + 3 digits)
- AC Voltage T-RMS: 4V/40V/400V/1000V
- Accuracy: ± (1.2% + 5 digits)
- DC Current: 400A/2000A
- Accuracy: ± (3.0% + 1A)
- AC Current T-RMS: 400A/2000A
- Accuracy: ± (3.0% + 2A)
- Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
- Accuracy: ± (1.0% + 4 digits)
- Frequency (Through Terminal): 10Hz to 100kHz
- Accuracy: ± (1.0% ±5 digits)
- Duty Cycle: 0.1% to 99.9%
- Accuracy: ± (1.2% + 5 digits)
- Temperature: -20 to 1000°C
- Accuracy: ± (2.0% + 5°C)
- Peak of AC Current: 400A/2000A
- Accuracy: ± (4.0% + 5 digits)
- Capacitance: 4nF/40nF/400nF/4uF/40uF/400uF
- Accuracy: ± (3.5% + 10 digits)
- Diode and Continuity
- CAT III 1000V, CAT IV 600V
View Catalogue: Metravi DT-9250 Digital AC DC Clamp Meter Catalogue
