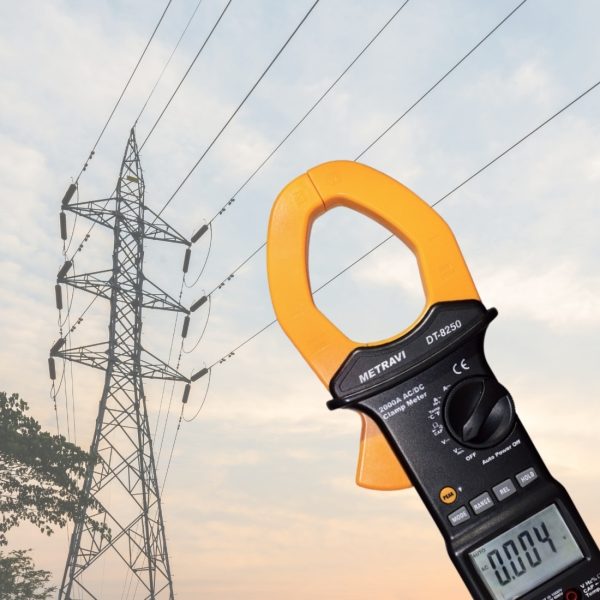

DT-8250 Digital AC/DC Clamp Meter
₹9,564.00 including GST @18%
The Metravi DT-8250 is a Digital AC/DC clamp meters with big jaw dia which can be used anywhere that high current and voltage measurements are needed.
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
DT-8250 is a Digital AC/DC clamp meters with big jaw dia which can be used anywhere that high current and voltage measurements are needed. The unique feature of the DT-8250 is that it can measure Frequency through the Clamp Jaw, so it can measure frequency at high current as well.
Additional information
| Model | |
|---|---|
| Brand | |
| Warranty | |
| Colour | |
| Display | |
| AC or AC/DC | |
| Auto Power Off | |
| Auto Ranging | Auto Ranging |
| Data Hold | |
| Peak Hold | Peak Hold |
| Jaw Dia | |
| Diode & Continuity | |
| Low Battery Indication | |
| Overload Indication | Overload Indication |
| Sampling Time | 2 times/sec |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | 9V |
| No of Batteries | 1 |
| DC Voltage Range | |
| DC Voltage Accuracy | ±1% |
| AC Voltage Range | |
| AC Voltage Accuracy | ±1.2% |
| AC Current Range | |
| AC Current Accuracy | ±3.0% |
| DC Current Range | |
| DC Current Accuracy | ±3.0% |
| Resistance Range | |
| Resistance Accuracy | ±1.0% |
| Frequency Range | |
| Frequency Accuracy | ±1.0% |
| Duty Cycle Range | 0.1% to 99.9% |
| Temperature Range | |
| Temperature Accuracy | |
| Peak Current | 400A/2000A |
| Capacitance Range | |
| Capacitance Accuracy | ±3.5% |
| DC Voltage Resolution | 0.1mV to 1V |
| AC Voltage Resolution | 1mV to 1V |
| AC Current Resolution | 100mA to 1A |
| DC Current Resolution | 100mA to 1A |
| Resistance Resolution | 0.1Ω to 10kΩ |
| Temperature Resolution | 0.1°C |
| Capacitance Resolution | 0.1nF to 10μF |
| Certifications |
- Auto Power off
- Auto/Manual Ranging
- Data Hold
- Peak Hold
- Clamp Jaw Dia: 2″ (52mm) approx
- Display: 3-3/4 digits (4000 counts) Backlit LCD
- DC Voltage: 400mV/4V/40V/400V/1000V
- Accuracy: ± (1% + 3 digits)
- AC Voltage: 4V/40V/400V/1000V
- Accuracy: ± (1.2% + 5 digits)
- DC Current: 400A/2000A
- Accuracy: ± (3.0% + 1A)
- AC Current: 400A/2000A
- Accuracy: ± (3.0% + 2A)
- Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
- Accuracy: ± (1.0% + 4 digits)
- Frequency (Through Clamp Jaw): 40Hz to 1kHz
- Accuracy: ± (1.0% ±5 digits)
- Duty Cycle: 0.1% to 99.9%
- Accuracy: ± (1.2% + 5 digits)
- Temperature: -20 to 1000°C
- Accuracy: ± (2.0% + 5°C)
- Peak of AC Current: 400A/2000A
- Accuracy: ± (4.0% + 5 digits)
- Capacitance: 4nF/40nF/400nF/4uF/40uF/400uF
- Accuracy: ± (3.5% + 10 digits)
- Diode and Continuity
- CAT III 1000V, CAT IV 600V
View Catalogue: Metravi DT-8250 Digital AC DC Clamp Meter Catalogue
