Description

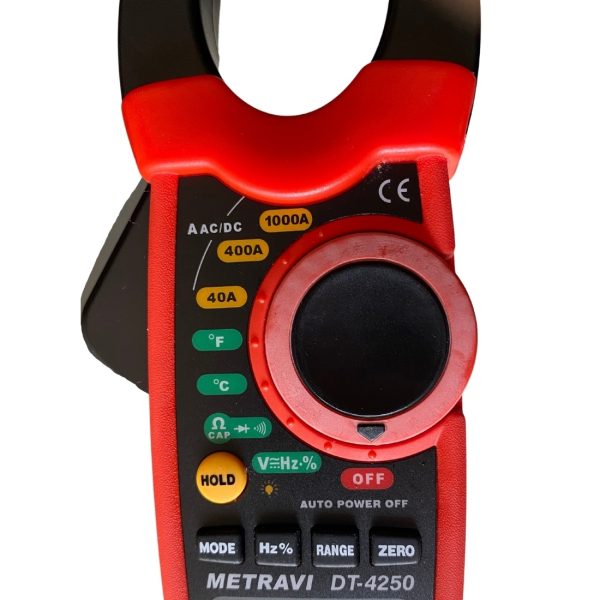

3-3/4 Digits, LCD, Data Hold, 30mm Jaw Size, AC/DC Voltage, AC/DC Current up to 1000A, Resistance, Capacitance, Temperature, Frequency, Duty Cycle, Diode & Continuity Test.
Additional information
Model | |
---|---|
Brand | |
Warranty | |
Colour | |
Display | |
AC or AC/DC | |
Data Hold | |
Jaw Dia | |
Diode & Continuity | |
Low Battery Indication | |
Overload Indication | Overload Indication |
Sampling Time | 2 times/sec |
Power Source | Battery Operated |
Battery Type | Alkaline |
Battery Size | 9V |
No of Batteries | 1 |
Auto Power Off | |
AC Current Range | |
AC Current Accuracy | ±3.0% |
DC Current Range | |
DC Current Accuracy | ±2.8% |
DC Voltage Range | |
DC Voltage Accuracy | ±0.8% |
AC Voltage Range | |
AC Voltage Accuracy | ±0.8% |
Resistance Range | |
Resistance Accuracy | ±1.0% |
Capacitance Range | |
Capacitance Accuracy | ±3.0% |
Frequency Range | |
Frequency Accuracy | ±1.2% |
Duty Cycle Range | 0.5% to 99% |
Certifications | CAT-II 1000V, CAT-III 600V, CE, IEC 61010, Pollution Grade 2 |
- Data Hold Facility
- Double molded body with rubber coating
- Clamp Jaw Size: 30mm
- Display : 3-3/4 Digital 3999 Counts Backlit LCD
- DC Voltage : 0 – 400m/4/40/400/600V.
- Accuracy : ±0.8%
- AC Voltage : 0 – 400m/4/40/400/600V.
- Accuracy : ±1.0%
- DC Current : 0 – 40/400/1000A.
- Accuracy : ±2.5%
- AC Current : 0 – 40/400/1000A.
- Accuracy : ±3.0%
- Resistance : 0 – 400/4k/40k/400k/4M/40M.Ohms
- Accuracy : ±1.0%
- Temperature : -20°C to 1000°C / -4°F to 1832°F
- Accuracy : ±3.0%
- Frequency : 0 – 5/50/500/5K/50K/100KHz
- Accuracy : ±1.2%
- Capacitance : 0 – 40n/400n/4u/40u/100uF
- Accuracy : ±3.0%
- Duty Cycle : 0.5 – 99.9%
- Accuracy : ±1.2%
- Diode Test and Continuity Test
- Confirms to CE, IEC 61010, CAT-III 600V
View Catalogue: Metravi DT-4250 Digital AC DC Clamp Meter Catalogue
