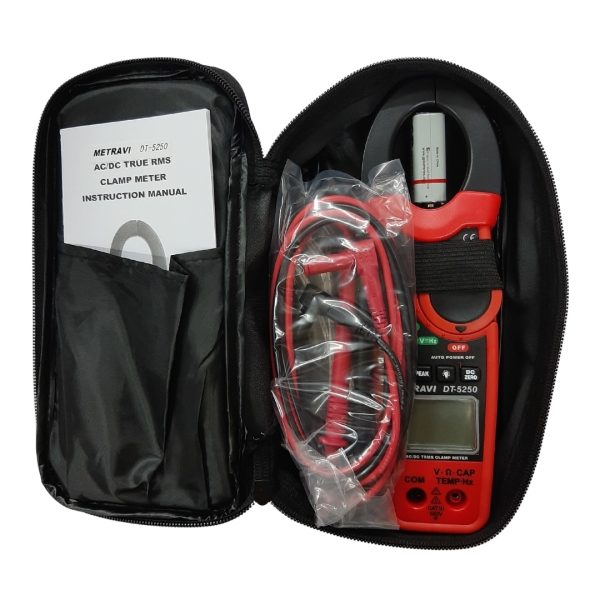

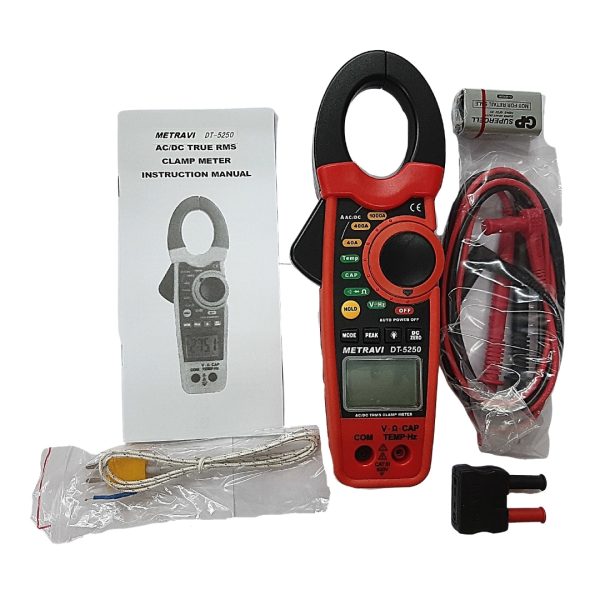

DT-5250 Digital TRMS AC/DC Clamp Meter
₹9,310.00 including GST @18%
3-3/4 Digits, LCD, Data Hold, 30mm Jaw Size, T-RMS, AC/DC Voltage, AC/DC Current up to 1000A, Resistance, Capacitance, Temperature, Frequency, Diode & Continuity Test.
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
3-3/4 Digits, LCD, Data Hold, 30mm Jaw Size, T-RMS, AC/DC Voltage, AC/DC Current up to 1000A, Resistance, Capacitance, Temperature, Frequency, Diode & Continuity Test.
Additional information
| Model | |
|---|---|
| Brand | |
| Warranty | |
| Auto Power Off | |
| Colour | |
| Display | |
| Data Hold | |
| T-RMS | |
| AC or AC/DC | |
| Jaw Dia | |
| Diode & Continuity | |
| Bargraph | Bargraph |
| Sampling Time | 2 times/sec |
| Low Battery Indication | |
| Overload Indication | Overload Indication |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | 9V |
| No of Batteries | 1 |
| DC Current Range | |
| AC Current Range | |
| DC Voltage Range | |
| AC Voltage Range | |
| Resistance Range | |
| Capacitance Range | |
| Temperature Range | |
| Frequency Range | |
| DC Current Accuracy | ±2.8% |
| AC Current Accuracy | ±2.8% |
| DC Voltage Accuracy | ±0.8% |
| AC Voltage Accuracy | ±1.0% |
| Resistance Accuracy | ±1.0% |
| Capacitance Accuracy | ±3.0% |
| Temperature Accuracy | |
| Frequency Accuracy | ±1.5% |
| DC Current Resolution | 0.01A to 1A |
| AC Current Resolution | 0.01A to 1A |
| DC Voltage Resolution | 0.1mV to 1V |
| AC Voltage Resolution | 0.1mV to 1V |
| Resistance Resolution | 0.1Ω to 10kΩ |
| Capacitance Resolution | 0.001nF to 0.01μF |
| Frequency Resolution | 0.001kHz |
| Temperature Resolution | 1˚C |
| Certifications |
- T-RMS Clamp Meter
- Auto Power Off
- Data Hold Facility
- Clamp Jaw Size : 30mm
- Display : 3-3/4 Digital 3999 Counts Backlit LCD
- DC Voltage : 0 – 400m/4/40/400/600V.
- Accuracy : ±0.8%
- AC Voltage : 0 – 400m/4/40/400/600V T-RMS.
- Accuracy : ±1.0%
- AC Current : 0 – 40/400/1000A T-RMS.
- Accuracy : ±2.8%
- DC Current : 0 – 40/400/1000A
- Accuracy : ±2.8%
- Resistance : 0 – 400/4k/40k/400k/4M/40M.Ohms
- Accuracy : ±1.0%
- Temperature : -40°C to 1000°C / -40°F to 1832°F
- Accuracy : ±2.5%
- Frequency : 0 – 4KHz
- Accuracy : ±1.5%
- Capacitance : 0 – 4n/40n/400n/4u/40u/400u/4m/40mF
- Accuracy : ±3.0%
- Diode Test and Continuity Test
- Confirms to CE, IEC 61010, CAT-III 600V
View Catalogue: Metravi DT-5250 Digital T-RMS AC-DC Clamp Meter Catalogue
