GD-09-6M Six-in-One Multi Gas Detector with built-in Pump
₹213,300.00 including GST @18%
NEW LAUNCH!!
Six-in-one Pumping Multi Gas detector for 6 gases: Oxygen (O2), Carbon Di Oxide (CO2), Carbon Monoxide (CO), Hydrogen Sulfide (H2S), Nitrogen Di Oxide (NO2) and Explosive Gases (EX). Also features PM2.5/PM10 detection module, 4G module and GPS.
- Description
- Additional information
- SPECIFICATIONS
- CATALOGUE
- Reviews (0)
Description
NEW LAUNCH!!
The Metravi GD-09-6M Pumping Multi Gas Detector is intelligently designed with advanced, integrated circuit technology, standard intelligent technical level design and proprietary digital-analogue hybrid communication technology.
It detects 6 gases: Oxygen (O2), Carbon Di Oxide (CO2), Carbon Monoxide (CO), Hydrogen Sulfide (H2S), Nitrogen Di Oxide (NO2) and Explosive Gases (EX).
It integrates electro-chemistry, catalysis and various detection principles such as semiconductors, thermal conductivity and optics to provide users with a reliable, accurate and safe gas detection solution.
The GD-09-6M also features PM2.5/PM10 detection module, 4G module and GPS.
The detector adopts a built-in pump-suction sampling method and the sensitive element adopts a high-quality gas sensor. It has good sensitivity and excellent repeatability, is easy lo use and helps to maintain the safety needs of industrial sites.
For high-reliability, the shell is made of high-strength engineering plastics and composite, non-slip rubber, which has high strength, solid hand feeling, and is waterproof. dust-proof and explosion-proof.
It is widely used in petroleum, chemical, environmental protection, smelting, refineries, manufacturing biochemical medicines, agriculture, scientific research, universities and other industries and fields.
*Note : The Metravi GD-09-6M can be customised for selected 6 gases from a given list (ref. catalogue) – the cost for the same will depend on the combination and features selected. The standard pre-designed device comes with CO, O2, CO2, NO2, H2S and EX detection.
Additional information
Brand | |
---|---|
Model | |
Warranty | |
Colour | |
Display | |
Detecting Gases | CO, CO2, Combustible Gas, H2S, NO2, O2 |
Response Time | <30S |
Dust & Water Proof | |
Calibration | Supports multi-point calibration method (5 points), Uses mixed gas calibration method |
Alarm | Audio Alarm, Pump failure alarm, Support for fail alarm, TWA and STE Alarm, Vibration and Display Alarm, Visual Alarm |
Explosion-proof Grade | Exiib IIC T4Gb |
Power Source | Battery Operated |
Battery Type | Li-Ion Rechargeable |
Pumping Type | 6-speed adjustable pump flow, Range 300-800mL/min, Suction type pump |
PC Interface | |
Memory and Storage | Extended external TF memory card, External storage in csv file format data |
GPS | 4G data transmission, GPS positioning function |
Cloud Support | Supports cloud platform data viewing |
Temperature Range | |
Humidity Range | 0%RH to 100%RH |
Particles Detection | measuring range 0-1000μg/m3, PM 10, PM 2.5 |
Sensor Life | 2 yrs |
Standby Time | ≥8h |
EX Measuring Range | 0 to 100%LEL |
H2S Measuring Range | 0 to 100ppm |
CO Measuring Range | 0 to 1000ppm |
O2 Measuring Range | 0 to 30%vol |
CO2 Measuring Range | 0 to 5%vol |
NO2 Measuring Range | 0 to 20ppm |
EX Measuring Resolution | 1%LEL |
H2S Measuring Resolution | 1ppm |
CO Measuring Resolution | 1ppm |
O2 Measuring Resolution | 0.1%vol |
CO2 Measuring Resolution | 0.01%vol |
NO2 Measuring Resolution | 0.1ppm |
- Detects O2 (Oxygen), CO (Carbon Monoxide), CO2 (Carbon di Oxide), H2S (Hydrogen Sulfide), NO2 (Nitrogen di Oxide) and EX (explosive/combustible) gases.

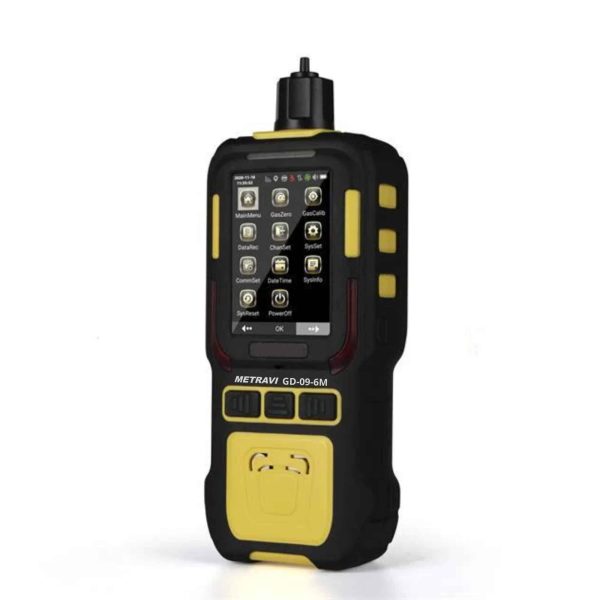

- Latest GUI design, comprehensive interface and display, user-friendly operation.
- The integrated built-in pump can detect up to six types of gas at the same time.
- Imported miniature, vacuum suction pump enables stable flow, long life and low noise.

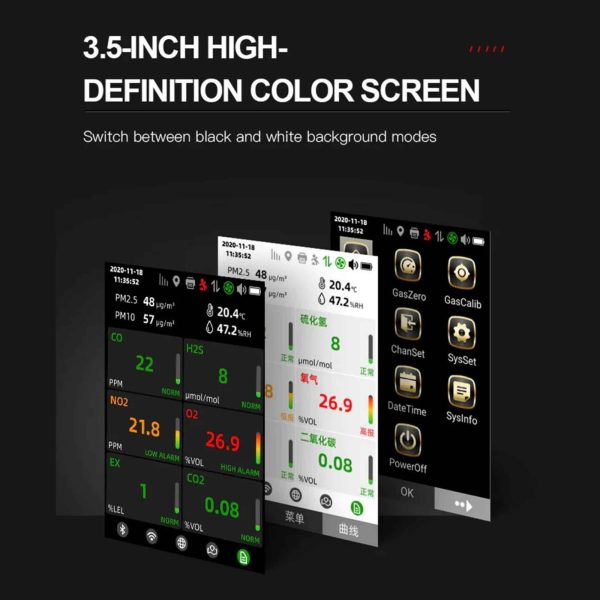

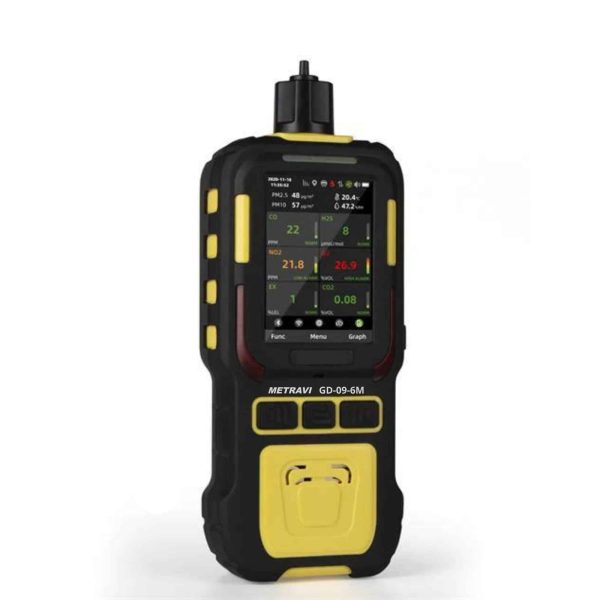

- 3.5-inch high-definition colour screen with a wide viewing angle of 120°.
- Response Time: T90<30S

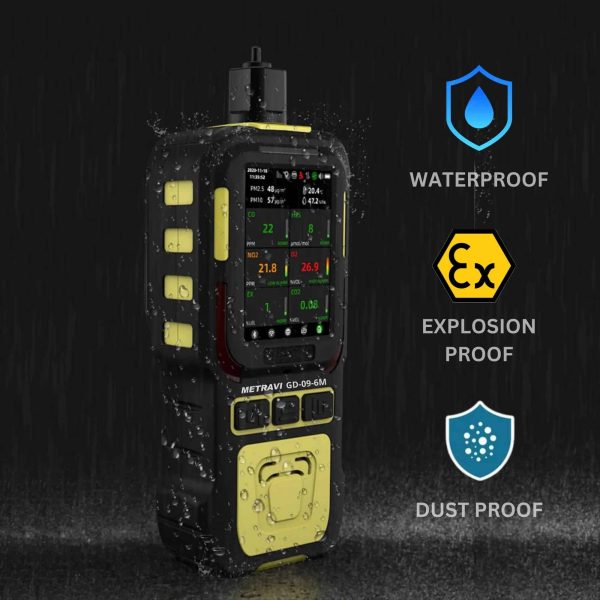

- IP65 protection: the device is waterproof and dust proof.
- Explosion Proof: Exiib IIC T4Gb certification.

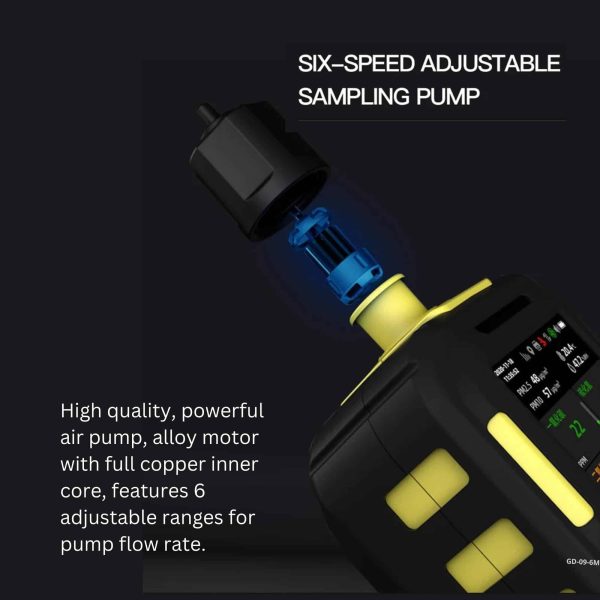

- Adjustable flow rate (6 levels).
- Calibration: Uses mixed gas calibration method. Supports multi-point calibration method (5 points).
- Alarms: Four Alarm modes – sound, light, vibration and display. Supports TWA and STE alarm functions.
- Fail alarm; the sampling pump will automatically sound alarm and display prompt if it fails.
- Gas units switching function.
- Temperature & Humidity: Real-time detection.
- PM 2.5/PM 10 detection module.

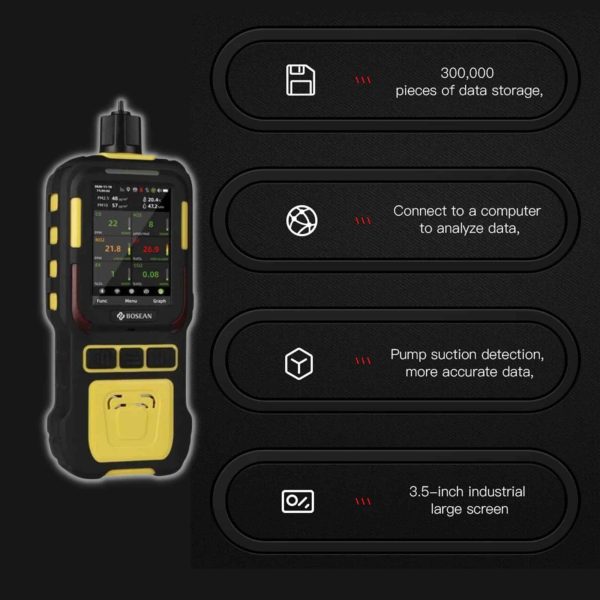

- Data Storage: Alarm storage, Timing storage, Manual storage. Supports external TF memory card storage mode and can read the stored data on a PC using the USB cable. External storage in csv file format data is available for viewing at a glance.
- Bluetooth: facilitates data view and setting of parameters through the mobile App
- Printing of Data: Supports external Bluetooth printer and real-time printing of test data (optional).
- GPS: GPS positioning function and 4G data transmission (optional).
- Cloud Support: Supports cloud platform data viewing* function (optional).

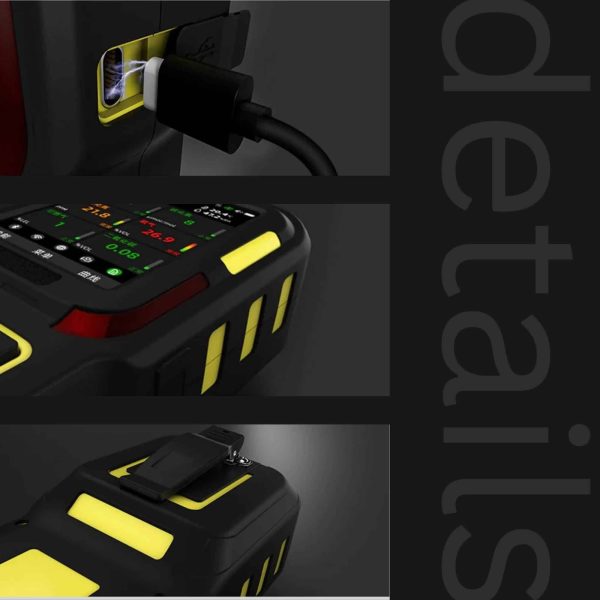

- Charging: USB type-C interface for charging.
- Connectivity: USB connectivity to PC or Smartphone (using App).
- Battery: Large capacity (4000mAh) rechargeable Li-Ion battery.
- Measurement Specifications:
GAS | MEASURING RANGE | LOW ALARM | HIGH ALARM | RESOLUTION |
EX | (0~100)%LEL | 20%LEL | 50%LEL | 1%LEL |
H2S | (0~100) ppm | 10ppm | 35ppm | 1ppm |
CO | (0~1000) ppm | 50ppm | 150ppm | 1ppm |
O2 | (0~30)%vol | 19.5%vol | 23.5%vol | 0.1%vol |
CO2 | (0~5)%vol | 1.00%vol | 2.00%vol | 0.01%vol |
NO2 | (0~20) ppm | 5.0ppm | 10.0ppm | 0.1ppm |
View Catalogue: Metravi-GD-09-6M-6-in-1-MultiGas-Detector-with-Pump-Catalogue
