GD-09-X Portable Customised Single Gas Detector

Portable, Single Gas Detector, customisable for more than 30 gases, with sound, light & vibration alarms. Rechargeable battery, IP65, explosion-proof.

Availability: Available on back-order Categories: , ,
Compare

Description

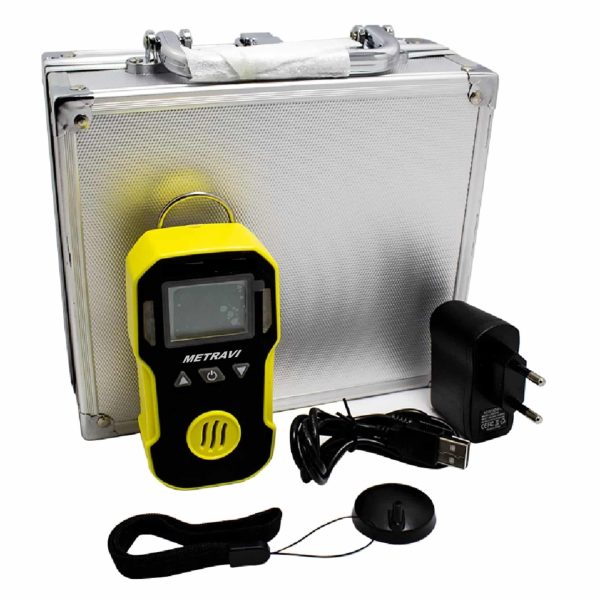

The Metravi GD-09-X is a portable single gas detector, which adopts advanced sensor and micro control technique, is easy to operate, has quick response, high accuracy and features great stability & repeatability.

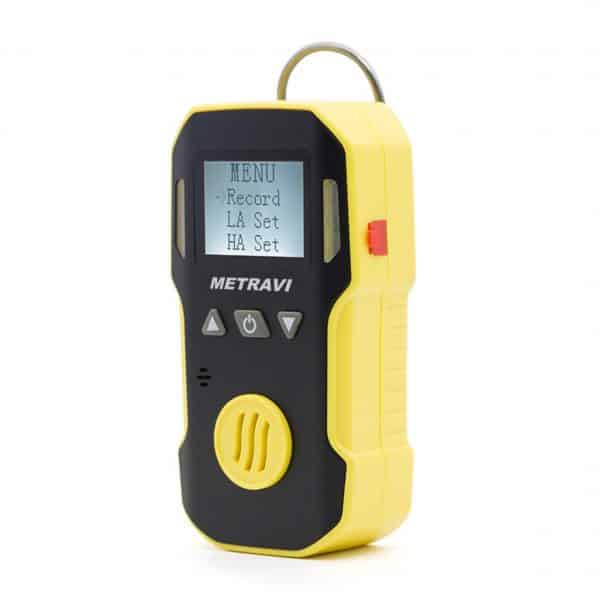

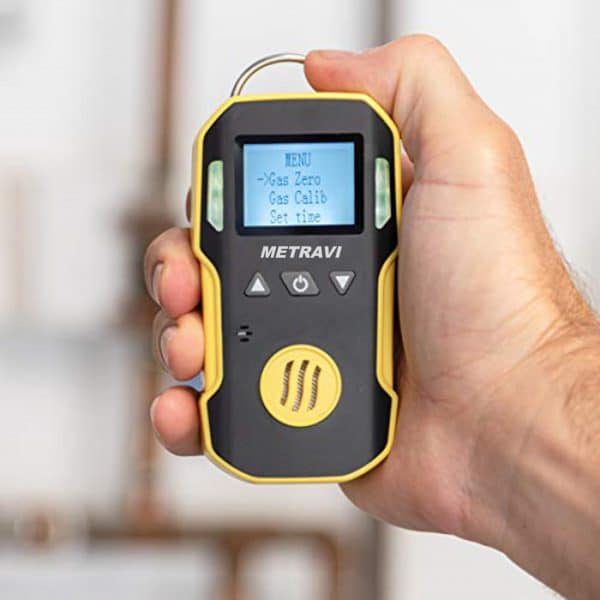

The detector comes with an in-built, rechargeable lithium battery with long standby and a big, back-lit LCD screen that displays all readings clearly and gas concentration values perfectly. The shell is designed using anti-slip material.

This small, portable and explosion proof instrument is ideal for applications involving toxic gas leaks and rescues in underground pipes, tunnels and mines.

The GD-09-X series can be customised for more than 30 types of gases, as per the requirement. Multi-gas detectors are also available and customisable for required permutation and combination of gases.

Model Gas Detected Range Low Alarm High Alarm
GD-09 CH4 Methane 0-100%LEL 20%LEL 50%LEL
GD-09 C3H8 Propane 0-100%LEL 20%LEL 50%LEL
GD-09-H2-A Hydrogen 0-100%LEL 20%LEL 50%LEL
GD-09-H2-B Hydrogen 0-1000ppm 35ppm 250ppm
GD-09-H2S-A Hydrogen Sulfide 0-100ppm 10ppm 15ppm
GD-09-H2S-B Hydrogen Sulfide 0-100ppm 10ppm 20ppm
GD-09-CO-A Carbon Monoxide 0-1000ppm 35ppm 200ppm
GD-09-CO-B Carbon Monoxide 0-1000ppm 30ppm 60ppm
GD-09-CO-C Carbon Monoxide 0-2000ppm 50ppm 150ppm
GD-09-C2H4O-A Ethylene Oxide 0-20ppm 10ppm 15ppm
GD-09-C2H4O-B Ethylene Oxide 0-100ppm 10ppm 15ppm
GD-09-C2H4-A Ethylene 0-100%LEL 20%LEL 50%LEL
GD-09-C2H4-B Ethylene 0-20ppm 5ppm 10ppm
GD-09-O2 Oxygen 0-30%vol 19.5%vol 23.5%vol
GD-09-C2H5OH Ethyl Alcohol 0-100%LEL 20%LEL 50%LEL
GD-09-NH3 Ammonia 0-100ppm 25ppm 50ppm
GD-09-CL2-A Chlorine 0-20ppm 5ppm 10ppm
GD-09-CL2-B Chlorine 0-50ppm 5ppm 10ppm
GD-09-O3-A Ozone 0-20ppm 5ppm 10ppm
GD-09-O3-B Ozone 0-10ppm 2ppm 5ppm
GD-09-SO2-A Sulfur Dioxide 0-20ppm 2ppm 5ppm
GD-09-SO2-B Sulfur Dioxide 0-100ppm 2ppm 5ppm
GD-09-PH3-A Phosphane 0-20ppm 0.3ppm 5ppm
GD-09-PH3-B Phosphane 0-5ppm 0.3ppm 2ppm
GD-09-CO2-A Carbon Dioxide 0-5000ppm 1000ppm 2000ppm
GD-09-CO2-B Carbon Dioxide 0-50000ppm 1000ppm 2000ppm
GD-09-NO Nitrous Oxide 0-250ppm 20ppm 50ppm
GD-09-NO2 Nitrogen Dioxide 0-20ppm 5ppm 10ppm
GD-09-N2 Nitrogen 70-100%vol 76%vol 82%vol
GD-09-HCN-A Hydrogen Cyanide 0-10ppm 10ppm 20ppm
GD-09-HCN-B Hydrogen Cyanide 0-50ppm 10ppm 20ppm
GD-09-HCL-A Hydrogen Cyanide 0-500ppm 10ppm 20ppm
GD-09-HCL-B Hydrogen Chloride 0-10ppm 10ppm 10ppm
GD-09-HCL-C Hydrogen Chloride 0-50ppm 10ppm 20ppm
GD-09-CH2O Formaldehyde 0-10ppm 2ppm 5ppm
GD-09-VOC-A Volatile Organic Compounds 0-100ppm 20ppm 50ppm
GD-09-VOC-B Volatile Organic Compounds 0-1000ppm 50ppm 200ppm
GD-09-C6H6 Benzene 0-100ppm 20ppm 50ppm
GD-09-EX Explosive Gases 0-100% 20% 50%

Additional information

Brand

Colour

Warranty

Model

Detecting Gases

C2H4, C2H4O, C2H5OH, C3H8, C6H6, CH20, CH2O, CH4, CL2, CO, CO2, H2, H2S, HCL, HCN, N2, NH3, NO, NO2, O2, O3, PH3, SO2, VOC

Display

Power Source

Battery Operated

Battery Type

Li-Ion Rechargeable

Battery Size

3.7V

Sampling Method

Natural Diffusion

Alarm

Audio Alarm, LED Light Alarm, Vibration Alarm

Explosion-proof Grade

Exib 11B T3 Gb

Dust & Water Proof

Sensor Type

Industrial Sensor

Sensor Life

2 yrs

  • Industrial Sensor
  • Cost-effective
  • Fast response
  • IP65 Dust and Water Proof
  • Gas Sampling Method:
  • Alarm Methods: Sound, Light & Vibration
  • Sensor Life: 2 years
  • Display: 1.77 inch backlit display
  • Power: Rechargeable Lithium Battery
  • Operating Time: 8 hours continuous (after full charge)
  • Charging Time: 4-6 hours
  • Operating Temperature: -20° to 50°C
  • Explosion Proof Certifications: Exib 11B T3 Gb

SINGLE GAS DETECTOR OPTIONS:

Model Gas Detected Range Low Alarm High Alarm
GD-09 CH4 Methane 0-100%LEL 20%LEL 50%LEL
GD-09 C3H8 Propane 0-100%LEL 20%LEL 50%LEL
GD-09-H2-A Hydrogen 0-100%LEL 20%LEL 50%LEL
GD-09-H2-B Hydrogen 0-1000ppm 35ppm 250ppm
GD-09-H2S-A Hydrogen Sulfide 0-100ppm 10ppm 15ppm
GD-09-H2S-B Hydrogen Sulfide 0-100ppm 10ppm 20ppm
GD-09-CO-A Carbon Monoxide 0-1000ppm 35ppm 200ppm
GD-09-CO-B Carbon Monoxide 0-1000ppm 30ppm 60ppm
GD-09-CO-C Carbon Monoxide 0-2000ppm 50ppm 150ppm
GD-09-C2H4O-A Ethylene Oxide 0-20ppm 10ppm 15ppm
GD-09-C2H4O-B Ethylene Oxide 0-100ppm 10ppm 15ppm
GD-09-C2H4-A Ethylene 0-100%LEL 20%LEL 50%LEL
GD-09-C2H4-B Ethylene 0-20ppm 5ppm 10ppm
GD-09-O2 Oxygen 0-30%vol 19.5%vol 23.5%vol
GD-09-C2H5OH Ethyl Alcohol 0-100%LEL 20%LEL 50%LEL
GD-09-NH3 Ammonia 0-100ppm 25ppm 50ppm
GD-09-CL2-A Chlorine 0-20ppm 5ppm 10ppm
GD-09-CL2-B Chlorine 0-50ppm 5ppm 10ppm
GD-09-O3-A Ozone 0-20ppm 5ppm 10ppm
GD-09-O3-B Ozone 0-10ppm 2ppm 5ppm
GD-09-SO2-A Sulfur Dioxide 0-20ppm 2ppm 5ppm
GD-09-SO2-B Sulfur Dioxide 0-100ppm 2ppm 5ppm
GD-09-PH3-A Phosphane 0-20ppm 0.3ppm 5ppm
GD-09-PH3-B Phosphane 0-5ppm 0.3ppm 2ppm
GD-09-CO2-A Carbon Dioxide 0-5000ppm 1000ppm 2000ppm
GD-09-CO2-B Carbon Dioxide 0-50000ppm 1000ppm 2000ppm
GD-09-NO Nitrous Oxide 0-250ppm 20ppm 50ppm
GD-09-NO2 Nitrogen Dioxide 0-20ppm 5ppm 10ppm
GD-09-N2 Nitrogen 70-100%vol 76%vol 82%vol
GD-09-HCN-A Hydrogen Cyanide 0-10ppm 10ppm 20ppm
GD-09-HCN-B Hydrogen Cyanide 0-50ppm 10ppm 20ppm
GD-09-HCL-A Hydrogen Cyanide 0-500ppm 10ppm 20ppm
GD-09-HCL-B Hydrogen Chloride 0-10ppm 10ppm 10ppm
GD-09-HCL-C Hydrogen Chloride 0-50ppm 10ppm 20ppm
GD-09-CH2O Formaldehyde 0-10ppm 2ppm 5ppm
GD-09-VOC-A Volatile Organic Compounds 0-100ppm 20ppm 50ppm
GD-09-VOC-B Volatile Organic Compounds 0-1000ppm 50ppm 200ppm
GD-09-C6H6 Benzene 0-100ppm 20ppm 50ppm
GD-09-EX Explosive Gases 0-100% 20% 50%

Required Gas or range not in list above?
Ask us for customised, portable, Single or Multi Gas Detectors in required permutations and combinations.
