Description

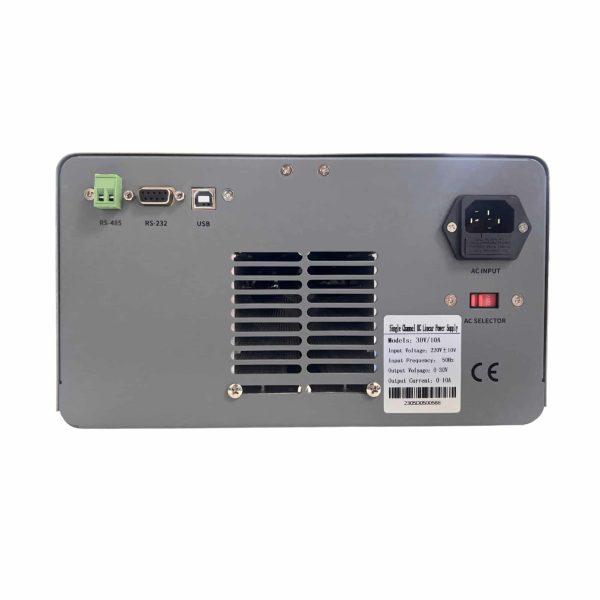

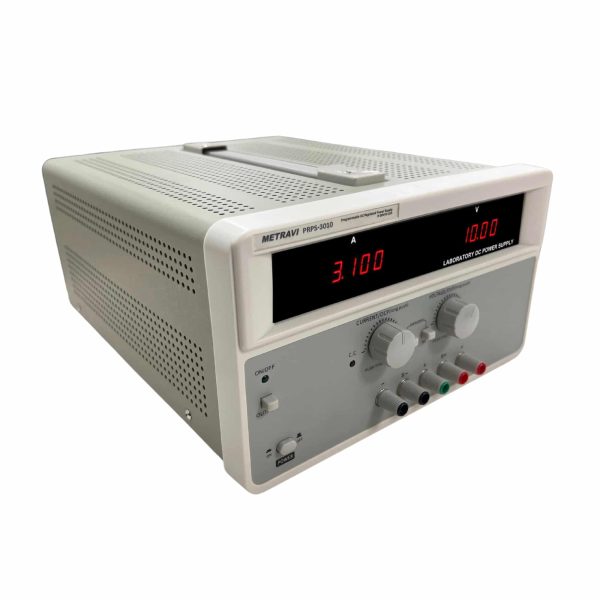

The Metravi PRPS-3010 Programmable DC Regulated Power Supply is a new generation of high quality linear DC power supply with remote voltage compensation function, automatic conversion of voltage stabilisation and current, high stability, high reliability, high precision and display output voltage and current) at the same time.
FEATURES:
• Infinite servo, intelligent fan system,
• With voltage and current preset function,
• Independently control output ON/OFF,
• Over temperature protection function,
• High resolution up to 1mV/1mA,
• Voltage and Current range limit function,
• Two sets of Voltage and Current storage functions
Additional information
| Colour | |
|---|---|
| Warranty | |
| Brand | |
| Model | |
| Input Voltage | 220V / 110V |
| Frequency | 50Hz/60Hz |
| Rated Output Voltage | 0~30V |
| Rated Output Current | 0~10A |
| Load Regulation Voltage | ≤0.01%+10mV |
| Load Regulation Current | ≤0.2%+5mA |
| Line Regulation Voltage | ≤0.01%+10mV |
| Line Regulation Current | ≤0.2%+5mA |
| Setting Resolution Voltage | 1mV |
| Setting Resolution Current | 1mA |
| Setting Accuracy Voltage | ≤0.01%+10mV |
| Setting Accuracy Current | ≤0.1%+5mA |
| Roadblock Resolution Voltage | 1mV |
| Roadblock Resolution Current | 1mA |
| Readback Accuracy Voltage | ≤0.01%+10mV |
| Readback Accuracy Current | ≤0.1%+5mA |
| Ripple & Noise Voltage | ≤3mV(rms) |
| Ripple & Noise Current | ≤5mA(rms) |
| Working Environment | ≤80%RH, 0~40℃ |
- Input Voltage: AC 220V/110V±10% 50Hz/60Hz
- Output Voltage: 0-30V
- Setting Accuracy: ≤0.01%+10mV
- Output Current: 0-20A
- Setting Accuracy: ≤0.1%+5mA
- Voltage Load Regulation: ≤0.01%+10mV
- Current Load Regulation: ≤0.2%+5mA
- Setting Resolution: 1mV/1mA
- Voltage and Current dual LED display
- Voltage and Current Coarse/Fine adjustment
- Protection mode: limited current output
- Parallel or serial connection detection to automatically switch outputs
- Stylish plexi-glass display panel
- Memory: 3 programmable memories
- PC connection: Remote control on a computer via USB connection
- Supports Windows XP, Vista, W7, W8, W81(32 bit, 64 bit) systems
View Catalogue: Metravi PRPS-3010 PRPS-3020 PRPS-3030 Programmable DC Regulated Power Supply Catalogue Web
