Description
NEW LAUNCH!!

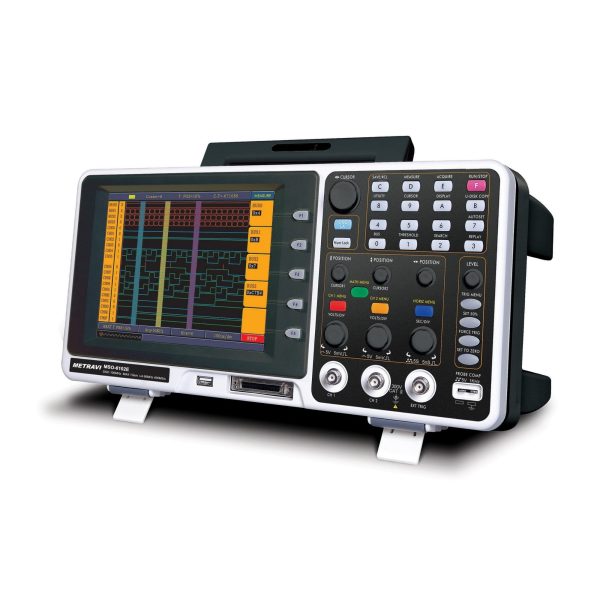

The Metravi MSO-6102E, a modern, new age Mixed Signal Oscilloscope, is a multi-functional instrument for your testing needs. Featuring 100MHz bandwidth, 1Gs/a high sampling rate, dual channels and a high resolution, high contrast, colour TFT LCD with adjustable backlight, the device comes with multiple functions and high specifications, making it reliable and accurate.It has a built in LOGIC ANALYSER with 16 input channels, 4M max storage for each channel, multiple trigger modes, convenient data measurement & data search, settings of all kinds of threshold levels.
The Metravi MSO-6102E, a modern, new age Mixed Signal Oscilloscope, is a multi-functional instrument for your testing needs. Featuring 100MHz bandwidth, 1Gs/a high sampling rate, dual channels and a high resolution, high contrast, colour TFT LCD with adjustable backlight, the device comes with multiple functions and high specifications, making it reliable and accurate.It has a built in LOGIC ANALYSER with 16 input channels, 4M max storage for each channel, multiple trigger modes, convenient data measurement & data search, settings of all kinds of threshold levels.
Applications include:
- Electronic circuits debugging
- Circuit testing
- Designing & Manufacturing
- Education & Training
- Automobile maintenance & designing
Additional information
| Model | |
|---|---|
| Colour | |
| Warranty | |
| Brand | |
| Bandwidth | 100MHz |
| No of Channel | 2 + 1 (external) |
| Sampling Rate | 1GS/s half channel, 500MS/s each channel |
| Input Coupling System | AC, DC, GND |
| Input Impedance | 1MΩ±2% |
| Probe Attenuation Factor | 1000X, 100X, 10X, 1X |
- Bandwidth: 100MHz
- Channels: 2+1 (external)
- Modes: Normal, Peak detect, Averaging
- Sample Rate: 1GS/s half channel*, 500MS/s each channel
- Input Coupling: DC, AC , Ground
- Input Impedance: 1MΩ±2%, in parallel with 15pF±5pF
- Probe Attenuation Factor: 1X, 10X, 100X, 1000X
- Channel Isolation: 50Hz: 100:1 / 10MHz:40 :1
- Cursor: △V and △T between cursors
- Automatic Measurement: Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B, Delay A→B , +Width, -Width, +Duty, -Duty
- Waveform math: +, -, *, /, FFT
- Waveform Storage: 4 waveforms
- Typical Measurement Frequency: 1kHz square wave
- Storage and call-out of waveforms
- Automatic setting function provided capable of fast setting
- Multiple-waveform calculation function
- Built-in FFT function
- Implementation of detecting the average and peak values of the waveform
- Digital real-time oscilloscope
- Edge, video, alternate, pulse and slope triggering function
- Different continuous displaying time
- Communication Ports: USB2.0, USB for file storage; RS-232 or VGA port (optional)
- Logic Analyser Sample Rate: 20 S/s ～ 1GS/s
- Logic Analyser Channels: 16
- Logic Analyser Max Storage: 4M/Channel, 16K(when only sampling rate is 250MS/s, 500 MS/s, 1GS/s)
- Logic Analyser Bandwidth: 100MHz
- Display: 8″ Coloured LCD (Liquid Crystal Display), 640×480 px, full colour TFT
- Power: Mains Voltage 100～240 VAC RMS, 50/60Hz, CAT II
- Fuse: 2A, T grade, 250V
- Accessories: Passive probe: 2, 1.2 m, 1:1 (10:1), OL-16 LA measurement module, Software CD, USB Cable, Power Cable, User Manual
- Calibration: One year is recommended for the calibration interval period
