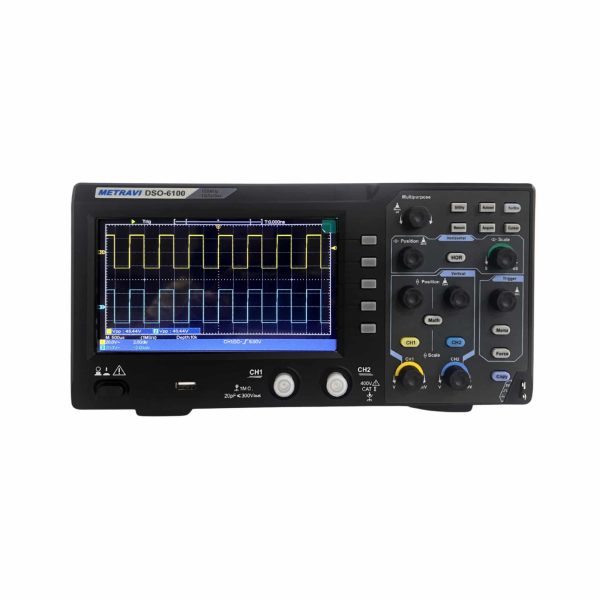

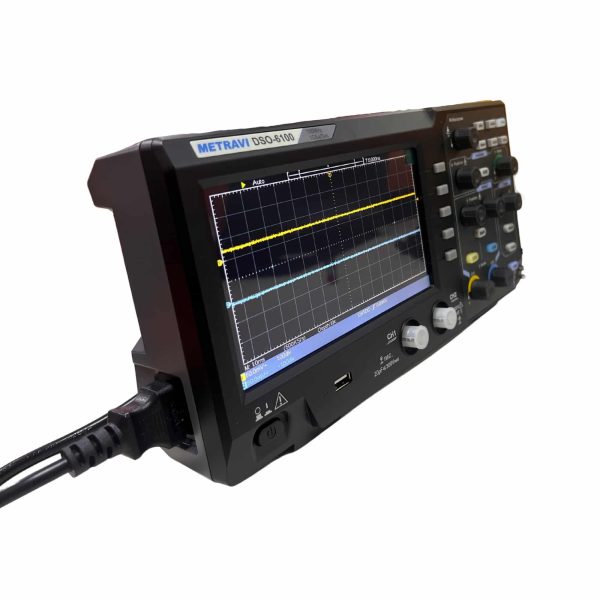

DSO-6100 Digital Storage Oscilloscope
₹35,775.00 including GST @18%
NEW LAUNCH!
100MHz DSO with colour display, 1GSa/Sec sampling rate, with USB PC Interface cable and software, with USB device & host
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
NEW LAUNCH!!
The Metravi DSO-6100 Digital Storage Oscilloscope comes with 100 MHz bandwidth and two channels. With a high sampling rate of 1G/s, it is a high-accuracy, reliable instrument for your applications.
The new Metravi 6000 series Digital Storage Oscilloscopes feature ultra-thin bodies, 7 inch high-resolution colour LCDs, USB interface and they also support SCPI and LabVIEW.
The Metravi DSO-6100 Digital Storage Oscilloscope comes with 100 MHz bandwidth and two channels. With a high sampling rate of 1G/s, it is a high-accuracy, reliable instrument for your applications.
The new Metravi 6000 series Digital Storage Oscilloscopes feature ultra-thin bodies, 7 inch high-resolution colour LCDs, USB interface and they also support SCPI and LabVIEW.
Applications include:
- Electronic circuits debugging
- Circuit testing
- Designing & Manufacturing
- Education & Training
- Automobile maintenance & designing
Additional information
| Model | |
|---|---|
| Brand | |
| Warranty | |
| Colour | |
| Bandwidth | 100MHz |
| Sampling Rate | 1GS/s |
| No of Channel | 2 |
| Rise Time | ≤7ns |
| Display | |
| Record Length | 10K |
| Probe Attenuation Factor | 1000X, 100X, 10X, 1X |
| Interpolation | sin (x) / x |
| Input Coupling System | AC, DC, GND |
| Vertical Resolution (A/D) | 8 bits |
| Trigger Type | Edge, Video |
| Trigger Mode | Auto, Single, Normal |
| Trigger Level | ±5 divisions |
| Cursor Measurement | Voltage and Time |
| Waveform Math | -, *, /, +, FFT |
| Waveform Storage | 16 |
| Interface | USB |
| Frequency Counter | 2Hz to 100MHz(in edge mode of single trigger type only) |
| Power Supply | Mains |
| Power Consumption | ＜15W |
| Fuse | 2A, T class |
| Sample Rate / Relay Time Accuracy | ±100ppm |
| Vertical Sensitivity | 5mV/div – 5V/div (at input) |
| Line / Field Frequency (video) | NTSC, PAL, SECAM standard |
| Automatic Measurement | -Width, +Duty, +Width, area, cycle area, Delay A→B, Fall time, Frequency, Period, Pre-shoot, Rise time, RMS, Vavg, Vbase, Vmax, Vmin, Vpp, Vtop, Width |
| Horizontal Scale (s/div) | 5ns/div – 1000s/div, step by 1 – 2 – 5 |
| Trigger Sweep Mode | Auto, Normal, and Single |
- Bandwidth: 100MHz
- Channel: Dual (2)
- Sample Rate: 1G/s
- Sample Rate/Relay Time Accuracy: ±100ppm
- Display: 7″ colour LCD, 800 x 480 pixels
- Probe Attenuation Factor: 1X, 10X, 100X, 1000X
- DC Accuracy: Average≥16：±(3% reading + 0.05 div) for △V
- DC Gain Accuracy: ±3%
- Max Input Voltage: 400V (PK – PK) (DC+AC, PK – PK)
- Channel Isolation: 50Hz : 100 : 1, 10MHz : 40 : 1
- Input Impedance: 1MΩ ± 2%, in parallel with 20pF±5pF
- Communication Interface: USB host, USB device
- Frequency Counter
