OP-250 100:1 Oscilloscope Probe

7,021.00 including GST @18%

OP-250 is a x 100 attenuation modular probe designed to be used with 250MHz oscilloscopes with an input impedance of 100MΩ.

View basket
Compare

Description

OP-250 is a x 100 attenuation modular probe designed to be used with 250MHz oscilloscopes with an input impedance of 100MΩ.

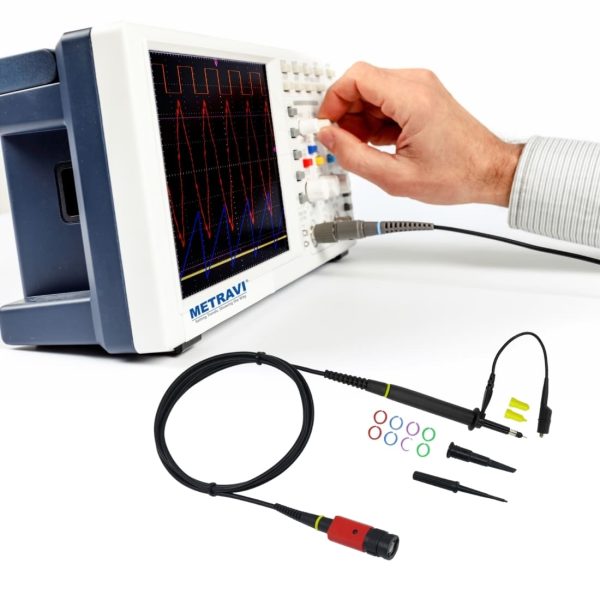

The probe consists of separate parts:

  1. BNC Male Connector and Compensation Box
  2. Probe body tip with R. C. assemblies
  3. Approx. 1.2m cable

Additional information

Brand

Model

  • Bandwidth 250MHz
  • Rise time 1.4ns
  • Attenuation Ratio 100:1
  • Input Resistance 100MW ±12%
  • Input Capacitance 6pF
  • Maximum Input 2KV
  • Working Voltage (VP.P)
  • Compensation Range 10pF~35pF
  • Operation Environment 0~50°C, 0~80%
  • RH Storage Environment -20~60°C, 0~90%RH
