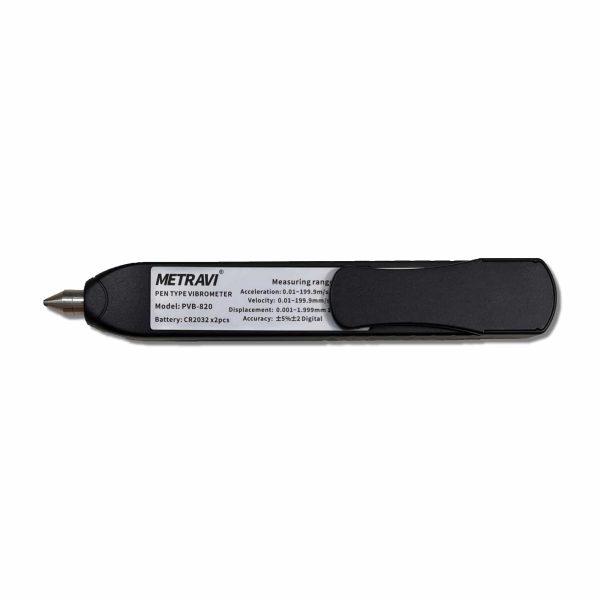

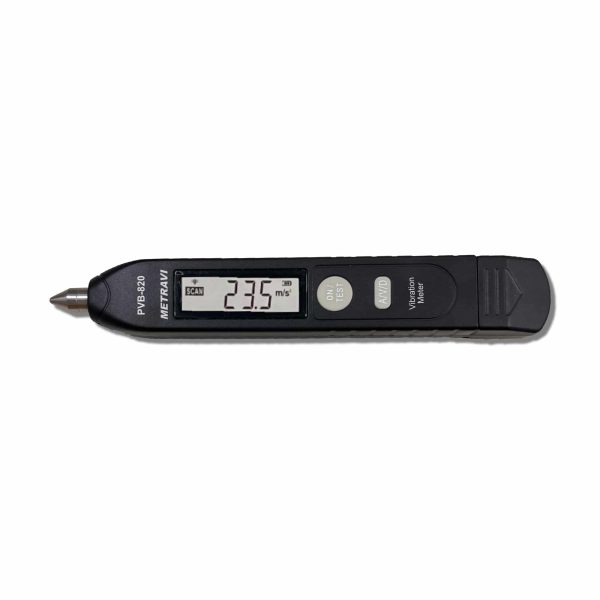

PVB-820 Pen Type Vibration Meter

Description

The Metravi PVB-820 is a handy and compact, pen-type Vibration Meter, to measure Acceleration, Velocity and Displacement.

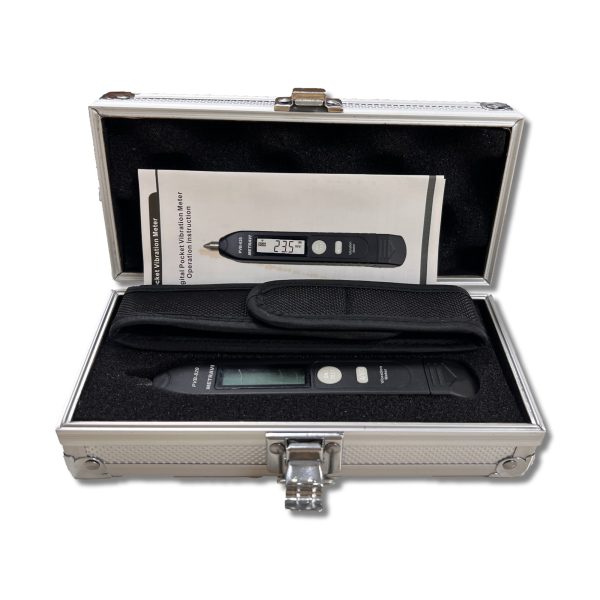

It comes in a hard carrying case as well as a padded canvas holder, for safely carrying the instrument around.

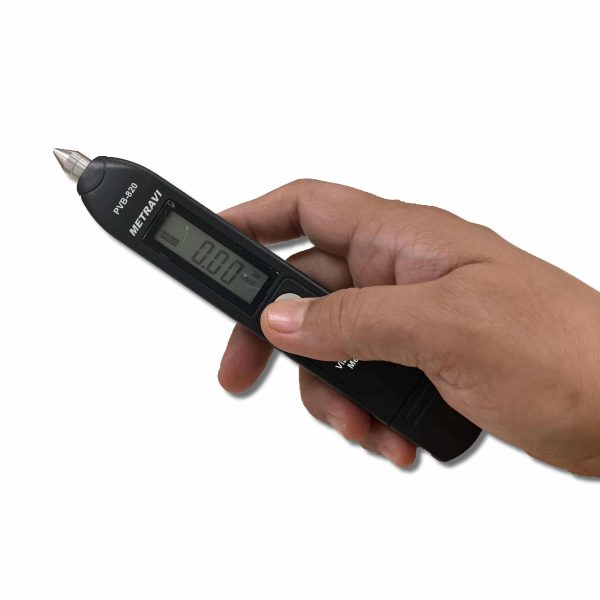

With precise and accurate measurements – it is a very useful device for consultants and maintenance professionals on the move and in the field.

Metravi PVB 820 Pen type Vibration Meter Battery Installation & Basic Usage Video

Video embedding powered by Webilop

Additional information

Model	PVB-820
Brand	Metravi
Warranty	One year against manufacturing defects
Colour	Black
Auto Power Off	Auto Power-off
Measurement Range	Acceleration : 0.01-199.9m/s2 (peak-value), Displacement : 0.001-1.999mm(peak-peak value), Speed:0.01-199.9mm/s(effective value)
Frequency Range	Acceleration Frequency Response: 10Hz to 1kHz, Displacement Frequency Response: 10Hz to 500Hz, Velocity Frequency Response: 10Hz to 1kHz
Accuracy	±5%
Display	LCD, Backlit
Power Source	Battery Operated
Battery Type	Button Cell
Battery Size	CR2032
No of Batteries	2
Working Temperature	0°C to 40°C
Operating Humidity	≤85%

• Pen type Pocket Size instrument
• LCD Display
• It can measure acceleration, velocity and displacement.
• Compact Size. It is light and easy to carry.
• Simple Two Key Operation
• Auto Power Off facility
• Acceleration: 0.01-199.9m/s2(peak value)
• Velocity: 0.01-199.9mm/s (effective value)
• Displacement: 0.001-1.999mm (peak-peak value)
• Acceleration Frequency Response: 10 Hz-1 kHz.
• Velocity Frequency Response: 10Hz-1kHz.
• Displacement Frequency Response: 10 Hz-500Hz

View Catalogue: Metravi PVB-820 Pen-type Vibration Meter Catalogue
