HVIRH-1.5/35 High Voltage Insulated Rescue Hook

8,775.00 including GST @18%

New Launch!!
High Voltage Rescue Hook for up to 33kV with 1.5m long FRP Rod in 1 section, rod dia 35mm, hook opening 450mm, hook load 120kgs

Description

New Launch!!

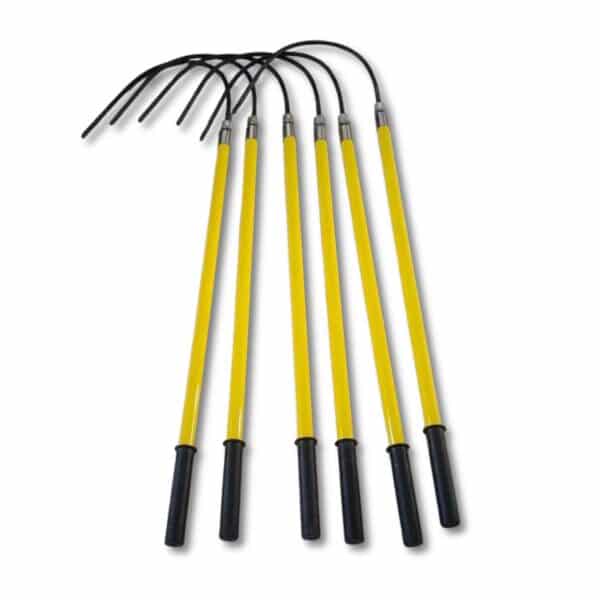

The Metravi HVIRH-1.5/35 High Voltage Insulated Rescue Hooks are used to withdraw an injured worker out of a hazardous area.

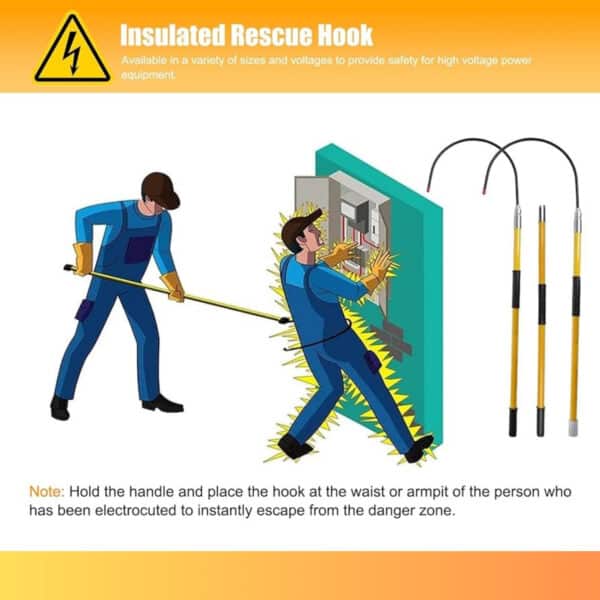

Just pull from the waist or underarms to prevent secondary damage to the electrocuted person caused by excessive force. After the rescue the electrocuted person needs to be sent to the hospital for treatment according to the situation.

These are easy to operate and store for rescue work. They are generally placed in conspicuous parts of distribution cabinets, electrical equipment and substations.

The Metravi HVIRH-1.5/35 High Voltage Insulated Rescue Hook has a Single Section: suitable for short poles.

Features:

  • U-shaped hook is convenient.

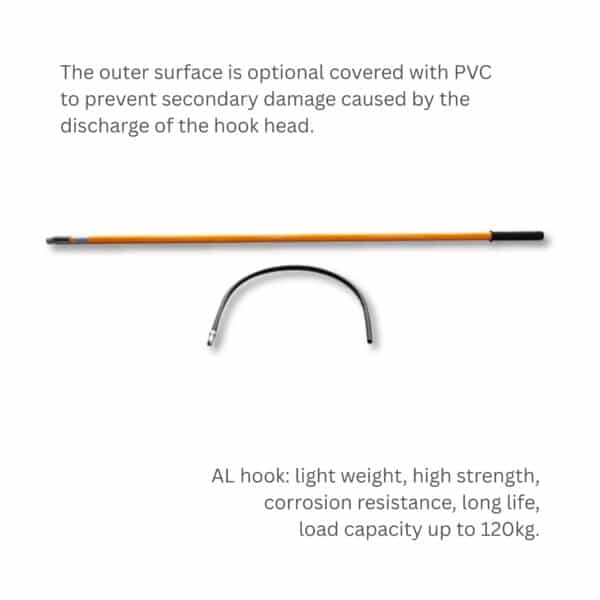

  • The outer surface is optionally covered with PVC to prevent secondary damage caused by discharge of the hook head.

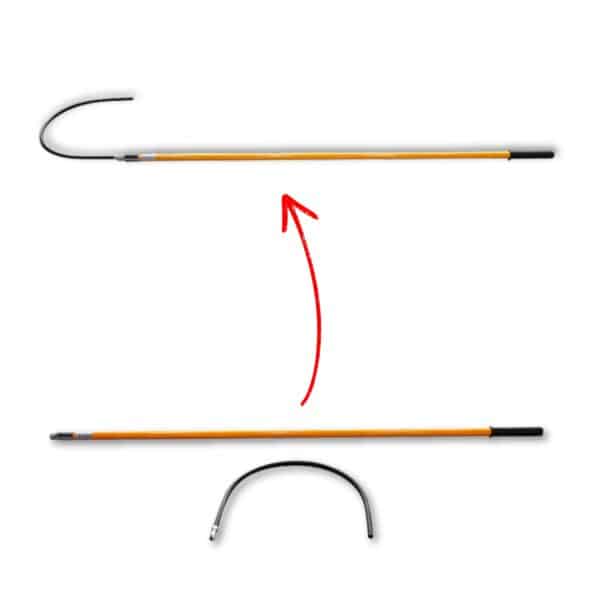

  • Detachable hook head, convenient for transportation and saving storage volume.
  • AL hook: lightweight, high strength, corrosion resistance, long life, load capacity up to 120 kg.
  • Steel hook: high hardness, wear resistance, load capacity up to 180 kg.

Applications:

  • Cable maintenance
  • Transformer substation
  • Electric towers
  • Communication constructions
  • Fire rescue
  • Drowning Rescue
  • Electric shock rescue

Additional information

Model

Colour

Brand

Warranty

Rod Length

1.5m

Rod Section

1

Rod Diameter

35mm

Hook Opening

450mm

AL Hook Load Capacity

120kg

  • Rod Length: 1.5m
  • Rod Section: 1
  • Type: Single Section
  • Voltage: 35kV
  • Rod Diameter: 35mm
  • Hook Opening: 450mm
  • AL Hook Diameter: 16mm
  • AL Hook Load Capacity: 120kg
  • Recommended Voltage vs. Length: 1-1.5m 10kV

Note: Hook opening, hook material, rod diameter, rod section and rod length can be customised.
