Description

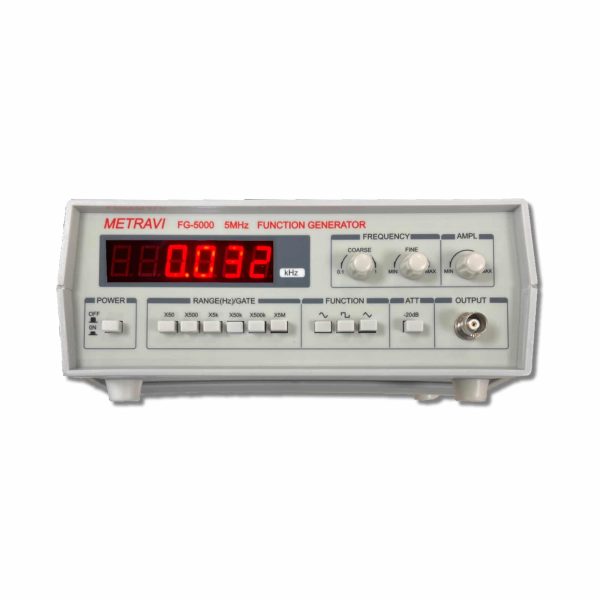

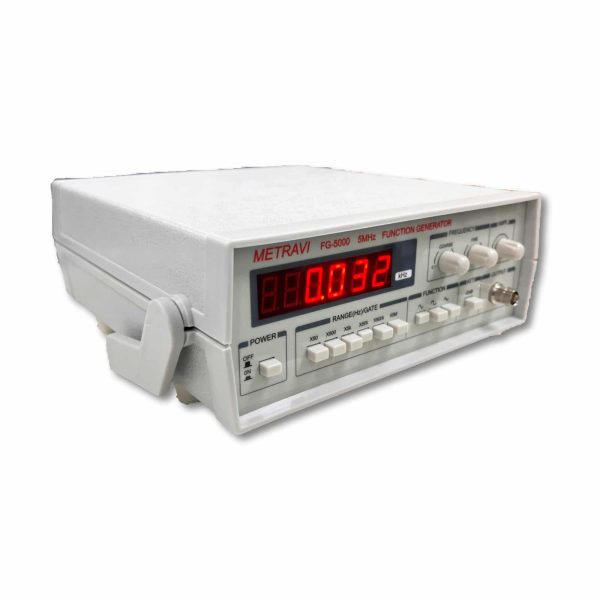

5MHz Function Generator
Additional information
| Model | |
|---|---|
| Brand | |
| Warranty | |
| Colour | |
| Display | |
| Frequency Range | |
| Amplitude Measurement Range | ≥10Vpp |
| Impedance | 50Ω |
| Waveform Type | Pulse, Ramp, Sine, Square, Triangle |
| Frequency Counter | 1Hz to 30MHz |
| Output Type | TTL/CMOS and Output |
| Distortion | <1% at 10Hz– 100 KHz |
| Power Source | Mains Operated |
- Frequency of the mode: 0.1Hz— 5MHz
- Output waveform: Sine, Triangle, Square, ±Ramp, ±Pulse
- TTL/CMOS and OUTPUT synchronous output
- Voltage Control Frequency (VCF) Capacity
- Less than 1% distortion at 10Hz– 100 KHz
- Less than 0.5dB frequency response at 0.1Hz— 100 KHz
- Frequency Counter: 1Hz—30MHz
- Amplitude: Not less than 20V p–p (open circuit)
- DC Voltage: 0–±10V continuously adjustable
View Catalogue: Metravi FG5000 Digital Function Generator Catalogue
