1810 AC/DC High Voltage Tester
New Launch!!

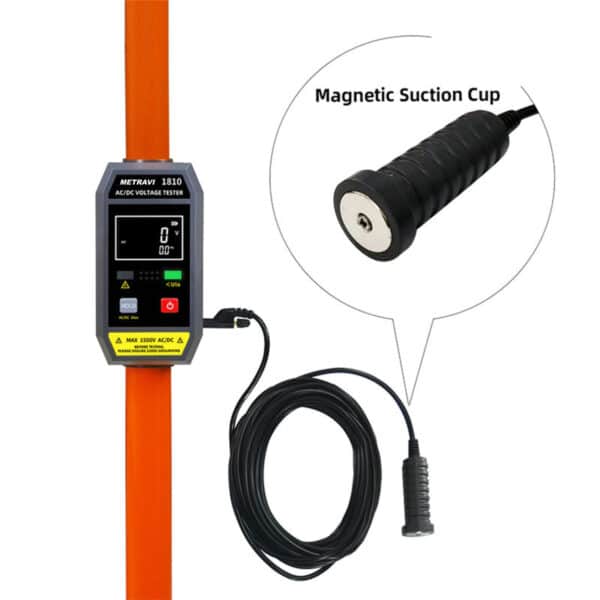

With Telescopic insulated rod, hook probe and LCD Display. Voltage to Earth measurement, 30V~35kV DC & AC Voltage Detection & Measurement, Induced Voltage measurement, Light & Buzzer Alarms. Equipped with magnet ground wire and clamp ground wire.
- Description
- Additional information
- SPECIFICATIONS
- CATALOGUE
- Reviews (0)
Description
New Launch!!

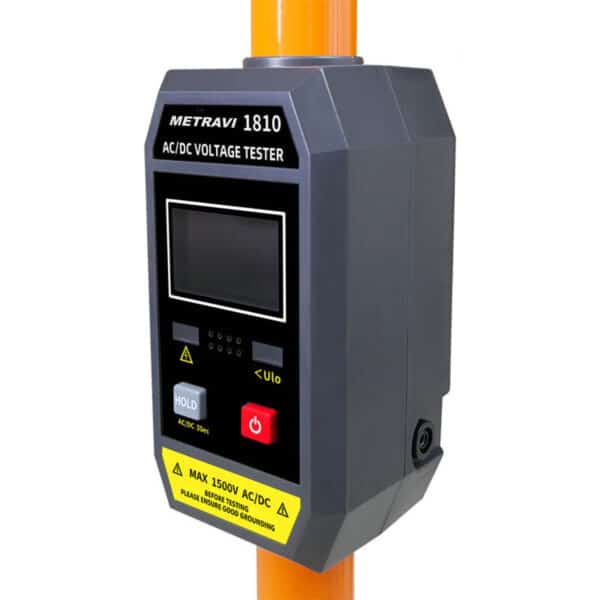

The Metravi 1810 AC/DC High Voltage Tester, is specifically a DC voltage tester designed for railway and power line applications.
It’s used to measure voltage in high and low voltage lines, including railway contact lines, and for verifying voltage and providing early warning.

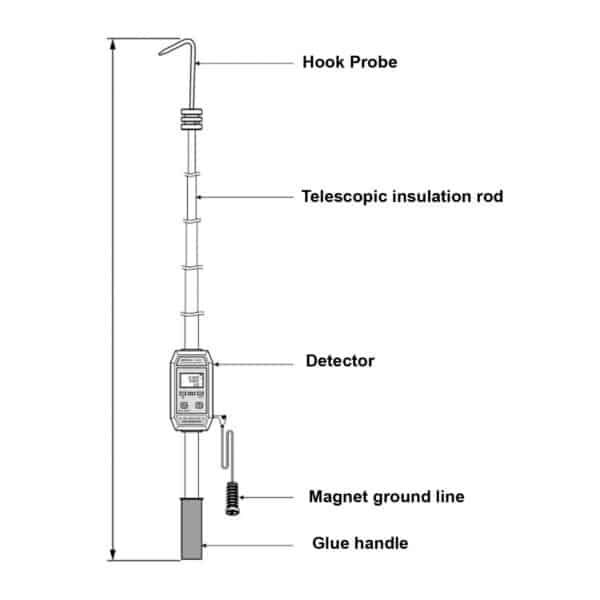

The instrument uses a telescopic structure with a retracted length of 1600mm and an extended length of 5000mm.

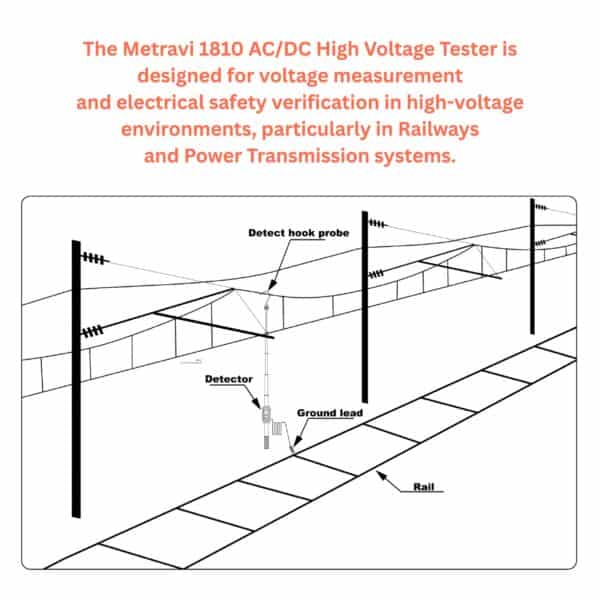

It is designed for voltage measurement and electrical safety verification in high-voltage environments, particularly in railway and power transmission systems.
The Metravi 1810 AC/DC High Voltage Tester utilises a telescopic structure for ease of use and portability, allowing for measurements at various distances. It helps detect induced voltages that can occur during maintenance on power lines due to capacitance from adjacent energised/live lines, ensuring the safety of maintenance personnel and equipment.
Additional information
| Brand | |
|---|---|
| Colour | |
| Model | |
| Warranty | |
| Power Supply | DC9V alkaline dry battery (LR6 1.5VX6PCS) |
| Input Resistance | About 150MΩ |
| Voltage Range | AC/DC 30V~35kV |
| Voltage Accuracy | ±2%±8dg |
| Voltage Resolution | 1V |
| Frequency Range | |
| Test Current | ＜0.4mA/10kV |
| LCD size | 47mmX28.5mm |
| Alarm | Testing voltage<36V, green indicator light up Testing voltage≥36V, red indicator light up and triggering buzzer alarm |
| Automatic Shutdown | 10 minutes without any operation after starting up, the detector will shutdown automatically |
| Low Battery Indication | Battery voltage lower than 7.2V±0.1V, display low voltage symbol “ ”, remind to replace the battery |
| Insulation Test | Between exposed metal and plastic housing: AC3700V/rms |
| Working Temperature | -10°C – 40°C; Below 80%RH |
| Accessories | Detector, Magnetic Ground Wire, Clamp Ground Wire, Carrying Case; LR06 Battery x 6 |
- Voltage Detection & Measurement Range: AC/DC 30V~35kV
- Accuracy: ±2%±8dgt
- Resolution: 1V
- Frequency Range: 50Hz/60Hz
- Input Resistance: About 150MΩ
- Test Current: < 0.4mA/10kV
- Insulation Test: Between exposed metal and plastic housing: AC3700V/rms
- Display: LCD 47mmX28.5mm
- Alarm Indication:
- Testing voltage<36V
- Green indicator light up Testing voltage≥36V
- Red indicator light up and triggering buzzer alarm
- Insulated Rod Length: Contraction state: about 1600mm, Extend state: about 5000mm
- Power: DC9V alkaline dry battery (LR6 1.5VX6PCS)
- Accessories: Detector, Magnetic Ground Wire, Clamp Ground Wire, Carrying Case; LR06 Battery x 6
View Catalogue: Metravi 1810 AC DC High Voltage Tester Catalogue
