PRO PA-810 Portable Power Quality Analyser
₹114,750.00 including GST @18%
NEW LAUNCH!!
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
NEW LAUNCH!!

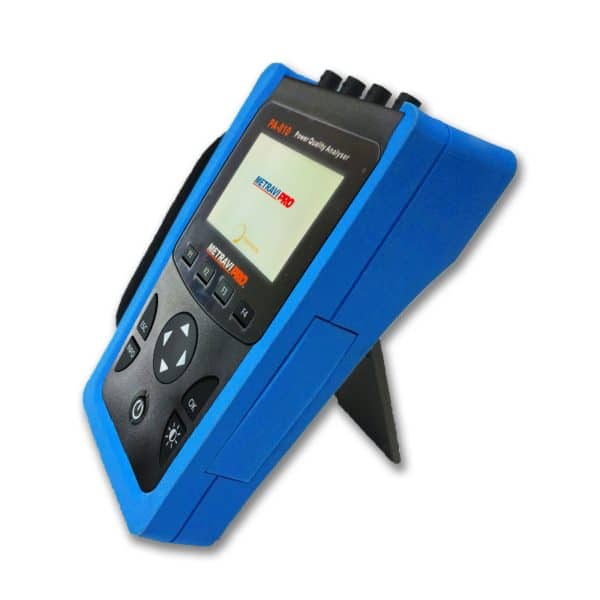

The Metravi PRO PA-810 Portable Power Quality Analyser measures currents and voltages and reports real-time RMS values for all 3-phases and neutral. In addition, it calculates power factor, real power, reactive power, and more.
The Metravi PRO PA-810 Portable Power Quality Analyser is a high-precision energy measurement device designed for accurate power analysis and monitoring. With IEC62053-22 Class 0.5 accuracy, it ensures precise readings across diverse applications.
Built to withstand extreme environments, it operates efficiently between -25°C to +55°C.
Featuring a 3.5-inch TFT display for clear data visualization and 16GB memory with USB-disk download, the Pro PA-810 simplifies data storage and transfer. Its multi-functional capabilities include selectable current ratings (600A/3KA/6KA), Rogowski coil support, 333mV CTs, and harmonic analysis up to the 51st order.
For enhanced connectivity, the Pro PA-810 supports Modbus-TCP communication, optional 4G gateway, and cloud server access. Powered by a 2900mAh lithium battery or 5V DC, it is the perfect solution for efficient energy monitoring and management.
Features:
- Current: Per phase, neutral, and average of 3 phases
- Voltage: L-L, L-N, and average of 3 phases,N-PE
- Frequency: 45-65 Hz
- Active Power: Total and per phase (signed)
- Reactive Power: Total and per phase (signed)
- Apparent Power: Total and per phase (signed)
- Power Factor (true): Total and per phase; 0.000 to 1 (signed)
- Angle: Voltage angle, Current angle
- Current Unbalance: Per phase, most unbalanced of 3 phases
- Voltage Unbalance: most unbalanced of 3 phases
- Data Logging : To MicroSD Card with user settable record interval of 1s to 9999s (default min)
- Data Capacity: 16GB memory, store about 2.5K Bytes data each time
Additional information
| Model | |
|---|---|
| Warranty | |
| Brand | |
| Colour | |
| Certifications | Pollution Degree 2, CATIII 300V, IEC/EN 61010-1, IEC/EN 61557-1, IEC/EN 61557-6 |
| Frequency Range | |
| Power Source | Battery Operated, 5VDC |
| Battery Type | Lithium Battery |
| Memory and Storage | 16GB memory, store about 2.5K Bytes data each time |
| Max/Min/Avg/Dif | |
| Active Energy | IEC62053-22 Class 0.5s |
| Reactive Energy | IEC62053-21 Class 2 |
| Reactive Power | IEC62053-21 Class 2 |
| Power Factor | ±0.005 |
| Harmonic Wave | 0 to 51 times |
| Display | |
| Sampling Rate | 8k samples per second |
| LED Indication | External Rogowski Coil. |
| IP Protection | IP20 conforming to IEC 60629 |
| Input Type | External CT(333mV only), External Rogowski coil |
| Poles | 1PH2W (L-N), 1PH2W(L-L), 1PH3W(L-L-N), 3PH4W 3PH3W |
| Supports Extra Sensors | 4pcs BNC terminal 320mV current clamp, 4pcs BNC terminal 333mV CT, 4pcs BNC terminal Rogowski coil |
| Current Clamp | 10A : 0.5% (100mA～10A) 1%(10mA～100mA), 5A : 0.5% (100mA～5A) 1%(10mA～100mA) |
| Frequency | 0.01% from 45 to 65Hz |
| Measurement Input Range | 1/225mV-707mV |
| Permissable Overload | 2V for 10s/hours |

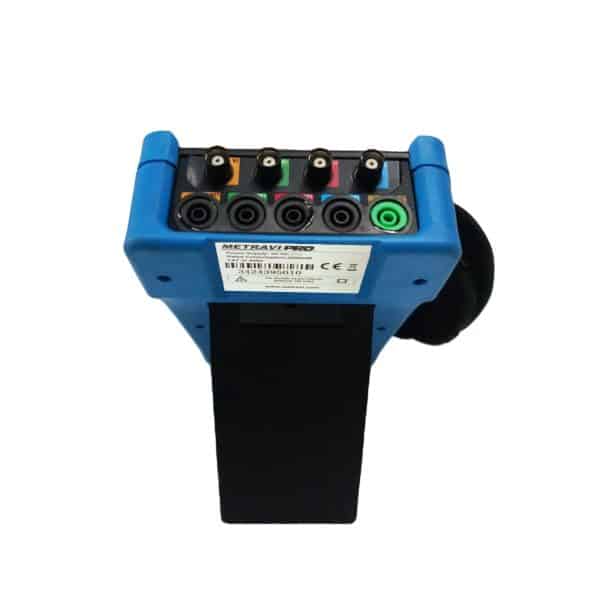

| Current Input | BNC connector |
| Voltage Input | Banana plug |
| Transmission Mode | RJ45 port |
| Communication Protocol | MODBUS TCP |
| IP Address | Configurable (default 192.168.1.5) |
| Port No. | 502 |
- Display:Â 3.5 inch Colour TFT
- Sampling Rate:Â 8k samples per second
- Harmonic:Â 51st in the mean time
- Poles:Â 3PH4W 3PH 3W; 1PH2W (L-N); 1PH2W(L-L); 1PH3W(L-L-N)
- LED Indication:Â External Rogowski Coil, External CT (333mV only)
- Power:Â 2*2900mAH Lithium battery Or 5VDC power supply
- Input Type:Â External Rogowski coil; External CT(333mV only)
- Poles: 3PH4W 3PH3W; 1PH2W (L-N); 1PH2W(L-L);1PH3W(L-L-N)
- Supports Extra Sensors: 4pcs BNC terminal 333mV CT; 4pcs BNC terminal 320mV current clamp; 4pcs BNC terminal Rogowski coil
- Accuracy Rated current (3 level selectable): 600A (0.5% from 6A to 720A); 3000A (0.5% from 10A to 3600A); 6000A (0.5% from 20A to 7200A)

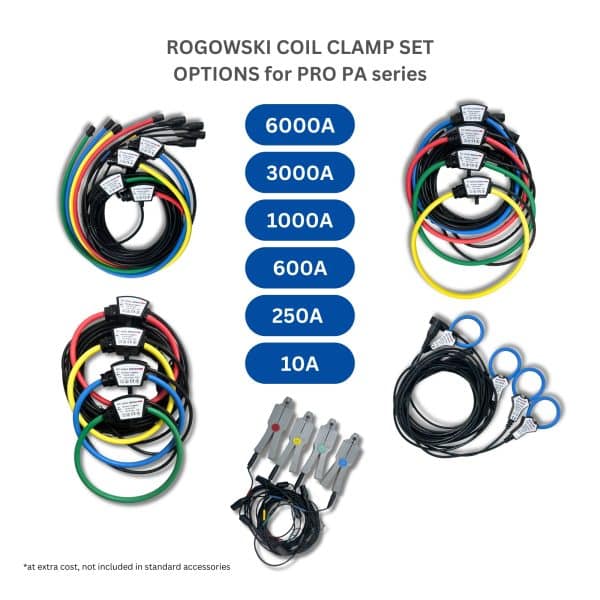

- Rogwoski Coil connect setting: 600A; 3000A; 6000A
- Current Clamp:
- 5A : 0.5% (100mA～5A) 1%(10mA～100mA)
- 10A : 0.5% (100mA～10A) 1%(10mA～100mA)
- CTs connect setting:Â Primary setting from 1A to 999999A; Secondary setting from 0.001mV to 707mV
- Voltage: 0.2% from 5 to 600V
- Power Factor: ±0.005
- Active / Apparent Power: IEC62053-22 Class 0.5
- Reactive Power:Â IEC62053-21 Class 2
- Frequency:Â 0.01% from 45 to 65Hz
- Active Energy: IEC62053-22 Class 0.5s
- Reactive Energy:Â IEC62053-21 Class 2
- Primary Current Range:Â 600A : 0.5A to 720A; 3kA : 0.5A to 3000A; 6kA : 0.5A to 7200A
- Measurement Input Range: 1/225mV-707mV
- Permissible Overload:Â 2V for 10s/hours
- Current Input: BNC connector
- Voltage Input: Banana plug
- Transmission Mode: RJ45 port
- Communication Protocol: MODBUS TCP
- IP Address: Configurable (default 192.168.1.5)
- Port No.: 502
- Min / Max Values: Minimum and Maximum values saved to nonvolatile memory with time stamping
View Catalogue: Metravi-Pro-PA-810-Portable-Power-Quality-Analyser-Catalogue
Be the first to review “PRO PA-810 Portable Power Quality Analyser”
You must be logged in to post a review.
You may also like…

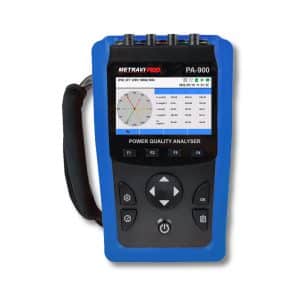

Portable Power Quality Analyser, Power Quality AnalyserPRO PA-900 3-Phase Power Quality & Harmonics Analyser
₹189,844.00 including GST @18%- Metravi PRO Series, Motor Testing Tools, Portable Power Quality Analyser, Power Quality Analyser
PRO 531 Portable Power Quality Analyser
₹259,200.00 including GST @18% - Portable Power Quality Analyser, Power Quality Analyser

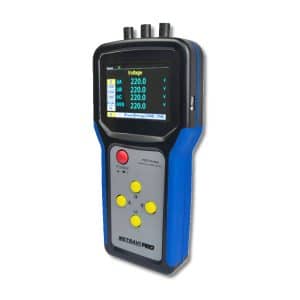

PRO PA-800 Portable Power Quality Analyser
