Metravi VT-150 Vibration Tester with Bearing Condition Analyser
NEW LAUNCH!

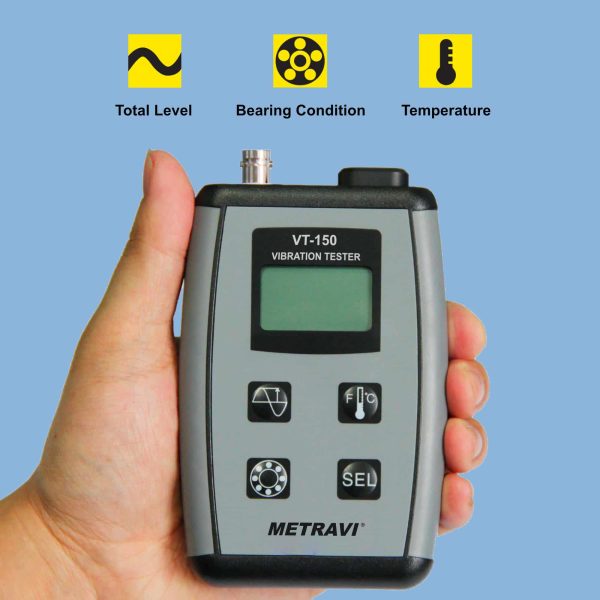

3-in-1 Vibration Tester with Bearing Condition analyser. Measures Velocity, Acceleration, Displacement, Bearing Condition and non-contact infrared temperature and features Alarm indication. IP65. Electromagnetic capability.
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
NEW LAUNCH!!

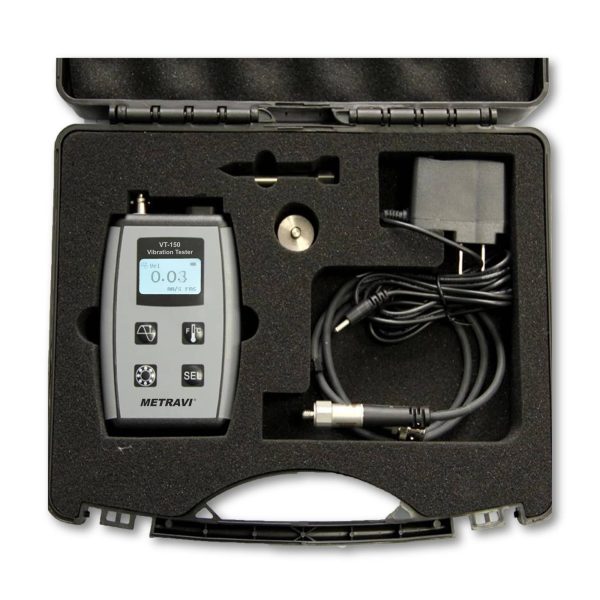

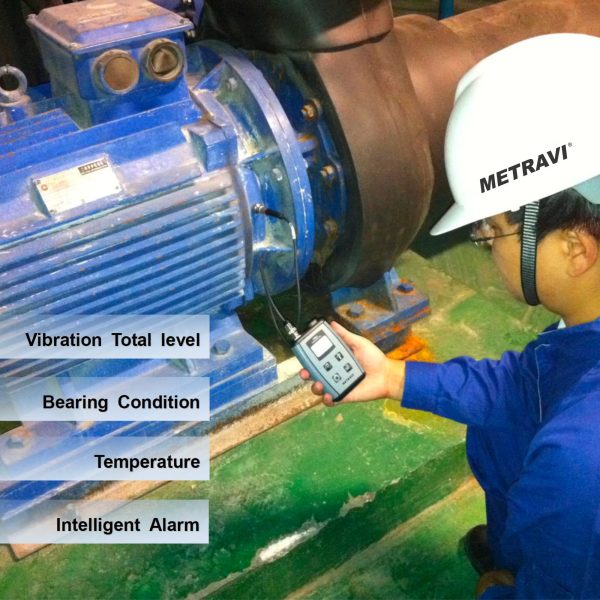

The Metravi VT-150 Vibration Meter is a reliable and easy to use, hand-held, condition inspection instrument; a fundamental tool of predictive maintenance on the plant floor. It provides Vibration measurement, Bearing Condition checks, and a built-in Infrared Thermometer, along with Machine Alarm indications as well.
The Metravi VT-150 enables plant maintenance technicians to monitor their machines, find potential problems in advance, to
prevent failures & breakdowns and ensure machine reliability.
FEATURES:
• Built-in analysis function.
• Analysis results displayed on the screen at the press of a button.
• With ISO standard analysis function.
• Large buttons that are easy to press even with gloves on.
• Practical, easy-to-use vibrometer with diagnosis function.
• Three measurement modes such as acceleration, speed and displacement.
Additional information
| Brand | |
|---|---|
| Warranty | |
| Model | |
| Colour | |
| Display | |

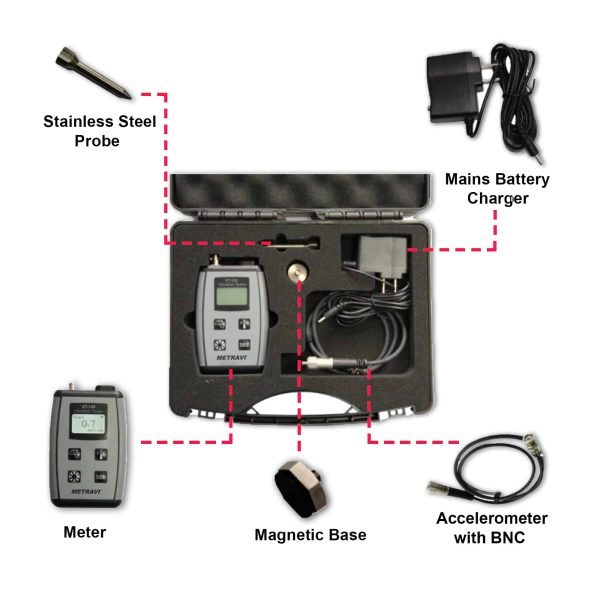

| Sensors | 100mv/g, BNC Connector, IEPE Accelerometer, Integral 80 cm Cable |
| Accuracy | < ±5% |
| Vibration Velocity Range | 0-200mm/s RMS, Frequency 10Hz-1kHz |
| Vibration Displacement Range | 0-2000μm, Peak-Peak Freq. 10Hz-1kHz |
| IR Temperature Range | -20°C to 120°C o |
| IR Temperature Resolution | |
| Distance to Sighting Ratio | |
| Power Supply | Battery |
| Battery Type | Li-Ion Rechargeable, 3.6V 1700 mAh |
| Reharge Time | 3 hours approx |
| Operation Time | >50 hours continuous |
| Mains Charger | 4.2 V DC 600 mA output, 50/60 Hz input, AC 100-240 V |
| In-Car Charger | 4.2V DC 600mA output, DC 12-24V input |
| Operating Temperature Range | |
| Storage Temperature Range | |
| Ingress Protection | IP64 – Dust-tight, splash-resistant |
| Electromagnetic Compatibility | 2004/108/EC |
- Velocity Range: 0-200mm/s RMS, Frequency 10Hz-1kHz
- Acceleration Range: 0-20g, Peak Frequency 10-12kHz
- Displacement Range: 0-2000μm, Peak-Peak Freq. 10Hz-1kHz
- Accuracy: < ±5%
- Vibration Evaluation as per ISO10816-3
- Bg – Hi Frequency Acceleration Range: 0-20 g RMS Freq. Range 1kHz-12 kHz
- Bv – Hi Frequency Velocity Range: 0-200 mm/s RMS Freq. Range 1kHz-12 kHz
- Bearing Status Check (by using rules of thumb)
- Non-contact Infrared Temperature Range: -20°C to 120°C or -5°F to +250°F\
- Accuracy: ±2%
- D:S : 8:1
- Temperature units in °C or°F with Laser Pointer

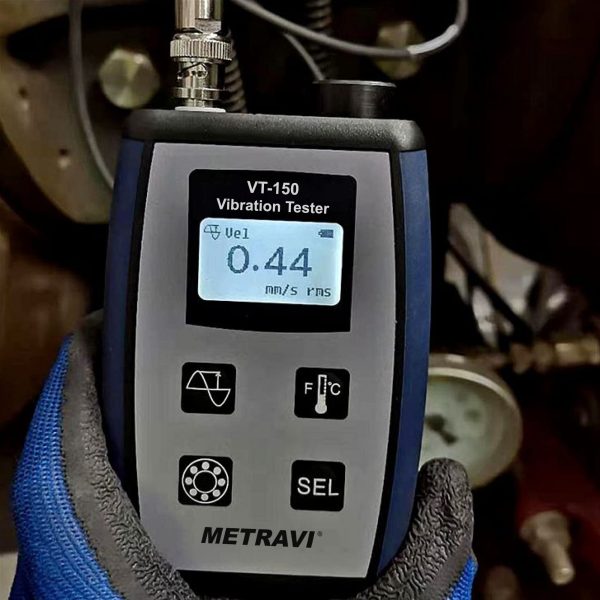

- Display: Monochromatic LCD (128×64 px)
- Alarm indications
- Power: Rechargeable Battery (1700 mAh) with mains charging
- Ingress Protection: IP64
- Electromagnetic Capability: 2004/108/EC
Be the first to review “Metravi VT-150 Vibration Tester with Bearing Condition Analyser”
You must be logged in to post a review.
You may also like…

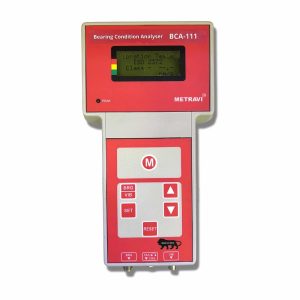

Bearing Condition Analyser Vibration Meter, Portable Vibration Meter, Vibration MeterBCA-111 Bearing Condition Analyser and Vibration Meter
₹195,919.00 including GST @18%- BEST SELLERMotor Testing Tools, Pen-type Vibration Meter, Portable Vibration Meter, Vibration Meter

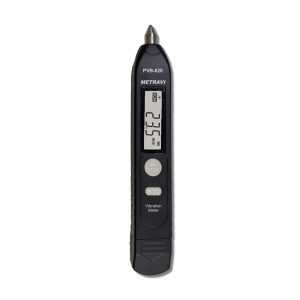

PVB-820 Pen Type Vibration Meter
₹24,671.00 including GST @18% - Dual Channel Vibration Meter, Portable Vibration Meter, Vibration Meter
VT-141 Dual Channel Vibration Meter
₹120,150.00 including GST @18% - Portable Vibration Meter, Vibration Meter

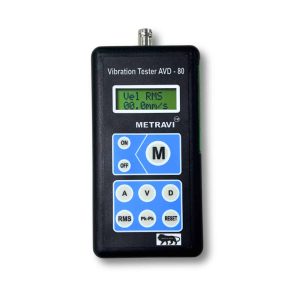

AVD-80 Portable Vibration Meter
₹56,025.00 including GST @18% - BEST SELLERMotor Testing Tools, Portable Vibration Meter, Vibration Meter
908 Portable Vibration Meter
₹25,400.00 including GST @18% - Portable Vibration Meter, Vibration Meter

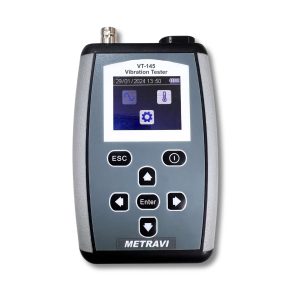

VT-145 Machine Condition Monitor and Vibration Tester
