Description
NEW LAUNCH!!

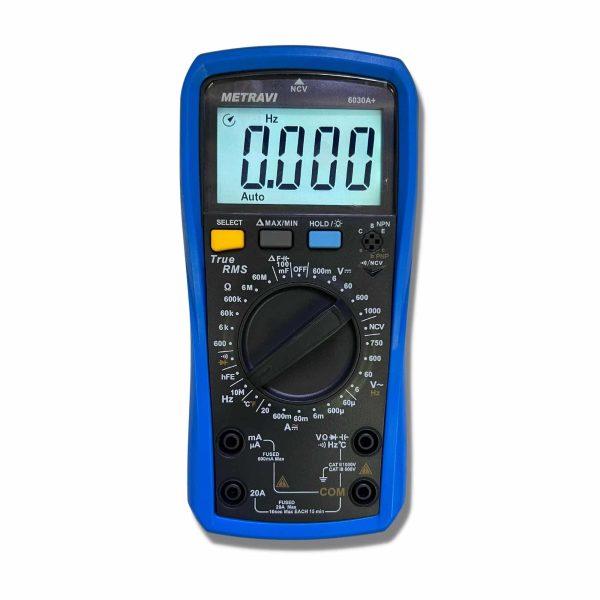

The Metravi 6030A+ Digital Multimeter is a 6000 Counts T-RMS Multimeter with a large, backlit LCD display.
It replaces the popular 6030A and is upgraded with better looks, wider ranges and higher specifications!
It has a large Capacitance measurement range up to 100mF with fast response time of less than 12S. Both the Non-contact Voltage Detection and Continuity have alarm as well as visual indication.
It has LIVE function to detect live and neutral lines and is equipped with automatic fast-blown fuse detection and high voltage detection.Â
Additional information
| Brand | |
|---|---|
| Colour | |
| Model | |
| Warranty | |
| Display | |
| Auto Power Off | |
| Data Hold | |
| Max/Min/Avg/Dif | |
| Diode & Continuity | |
| Transistor Test | Transistor Test |
| NCV Detection | |
| Overload Indication | Overload Indication |
| Low Battery Indication | |
| Power Source | Battery Operated |
| DC Voltage Range | |
| AC Voltage Range | |
| DC Current Range | |
| AC Current Range | |
| Resistance Range | |
| Capacitance Range | |
| Frequency Range | |
| Temperature Range | |
| Temperature Accuracy | |
| Polarity | Automatic |
| Battery Type | Alkaline |
| Battery Size | AAA |
| No of Batteries | 2 |
| Acousto-optic Indication | Beep and LED indication |
| T-RMS | |
| Power Consumption | 1.8mA |
| DC Voltage Accuracy | ±0.5% |
| AC Voltage Accuracy | ±0.8% |
| Resistance Accuracy | ±0.8% |
| Capacitance Accuracy | ±3.0% |
| DC Current Accuracy | ±0.8% |
| AC Current Accuracy | ±1% |
| Frequency Accuracy | ±0.1% |
| DC Voltage Resolution | 0.1mV to 1V |
| AC Voltage Resolution | 0.001V to 1V |
| DC Current Resolution | 0.01μA to 0.01A |
| AC Current Resolution | 0.01μA to 0.01A |
| Resistance Resolution | 0.1Ω to 0.01MΩ |
| Capacitance Resolution | 0.001nF to 0.1mF |
| Frequency Resolution | 0.001Hz to 0.001MHz |
| Temperature Resolution | 1ËšC |
- Large LCD, 6000 Counts display
- True-RMS measurement
- Fast ADC(3 times/s)
- Full-featured false detection protection for up to 1000V over-voltage surge, over-voltage and over-current alarm functions

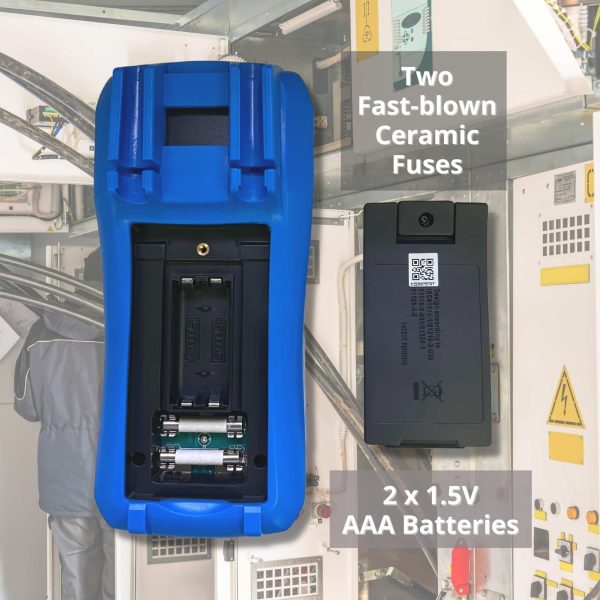

- Automatic detection and alarm for blown fuse
- Extended measuring range, especially for capacitance (compared with similar products)
- The ≤100mF response time is within 12s

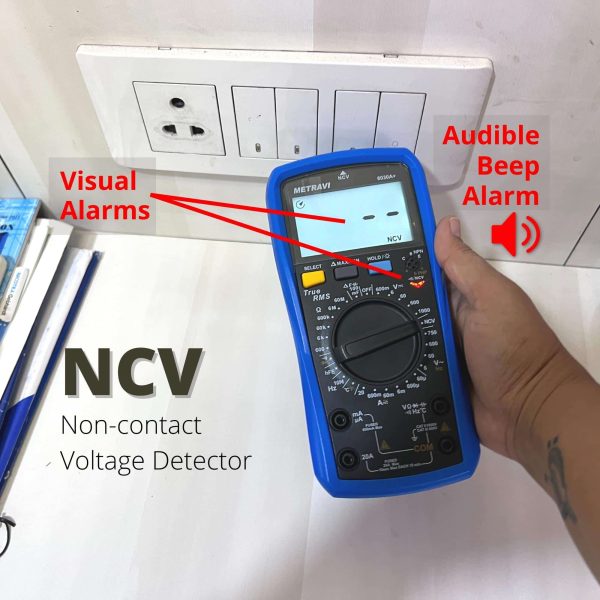

- Non-contact voltage measurement (NCV)
- Live wire identification
- Power consumption of the multimeter is about 1.8 mA. The circuit has automatic power saving function. The micro power consumption in sleep state is only about 17mA. which effectively extends the battery life to 500 hours.
- With current (AC/DC) mode memory function.
- Measuring Range Selection : Manual
- Backlight : Turn on manually and turns off automatically after 30 seconds.
- Polarity : If negative polarity is input, symbol will be displayed.
- Data Hold Function
- Low Battery Indication
- Acousto-optic Indications : The continuity and NCV measurement are accompanied by the beep and LED illumination indication

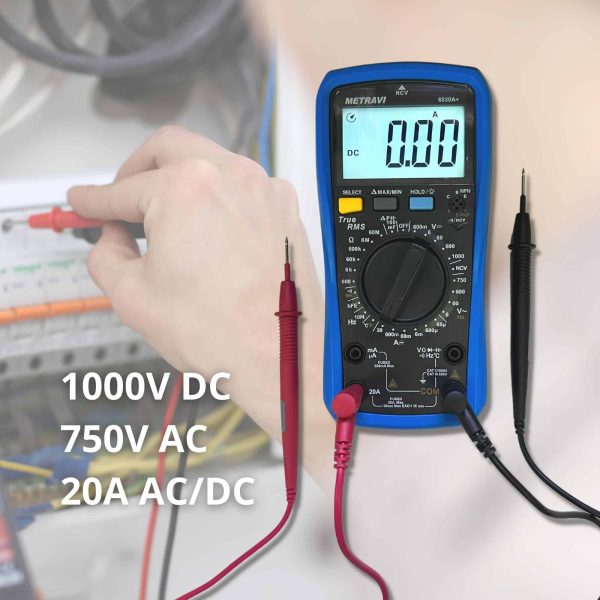

- DC Voltage : 600mV/6V/60V/600V/1000V
- Accuracy : ± (0.5%+2)
- AC Voltage TRMS : 6V/60V/600V/750V
- Accuracy : ± (0.8%+3)
- DC Current : 60uA/6mA/60mA/600mA/20A
- Accuracy : ± (0.8%+8)
- AC Current TRMS : 6mA/60mA/600mA/20A
- Accuracy : ± (1.0%+12)
- Resistance : 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
- Accuracy : ± (0.8%+3)
- Capacitance : 9.999nF/99.99nF ~ 999.9μF/9.999mF/99.99mF
- Accuracy : ± (2.5%+20)
- Frequency : 9.999Hz ~ 10.00MHz
- Accuracy : ± (0.1%+5)
- Temperature : -40 ~ 0°C / >0 ~ 100°C / >100 ~ 1000°C
- Accuracy : ± (1.0%+3)
View Catalogue: Metravi 6030A+ Digital TRMS Multimeter Catalogue
