Description
Contact type, light and buzzer indication, detects presence of High Voltage in AC Lines, 354 to 1005mm length, detects 3kV to 24kV AC and 80 to 600V AC
Additional information
| Model | |
|---|---|
| Brand | |
| Warranty | |
| Voltage Detection | Detects the presence of voltage in AC Lines. |
| Detector Length | 354mm to 1005mm |
| Alarm | Light and Buzzer indication |
| Voltage Detection Range | up to 24kV |
| Insulation Resistance Range | More than 2000MΩ |
| Leakage Current | 100μA or less than 100μA at withstand voltage test |
| Power Source | Battery Operated |
| Battery Size | LR44 |
| Battery Type | Alkaline |
| No of Batteries | 2 |
| Frequency Range | |
| Certifications | EN 5008-1, EN 55022, EN 55082-1, EN-61000-4-2, EN-61000-4-3, EN-61010-1 |
- Detects the presence of voltage in AC Lines.
- Can be extended in length from 354mm to 1005mm

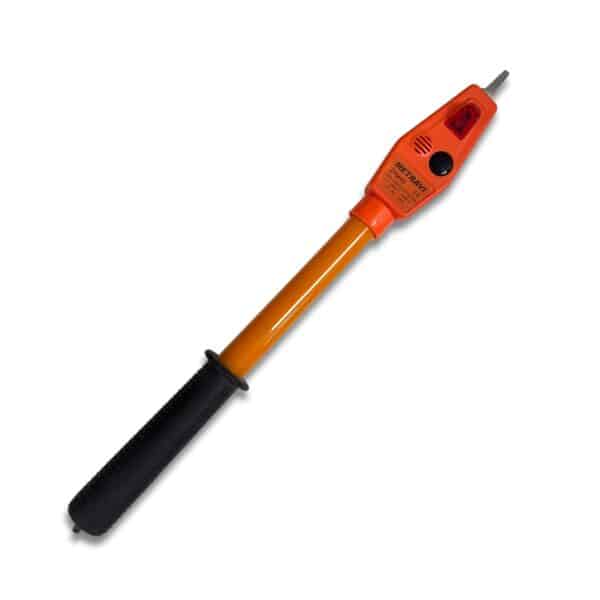

- Used to detect High Voltage up to 24kV
- Waterproof
- Can also be used to detect low voltage up to 600V
- Has both visual and audible indication
