UTG-02 Ultrasound Thickness Gauge with Rechargeable Battery
₹13,669.00 including GST @18%
Versatile Ultrasonic Thickness Gauge to measure thickness of high density material up to 300mm, with Data Logging and Rechargeable Battery
- Description
- Video
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
The Metravi UTG-02 Ultrasound Thickness Gauge with Rechargeable Battery is an intelligent device that adopts the latest high performance and low power consumption microprocessor technology.

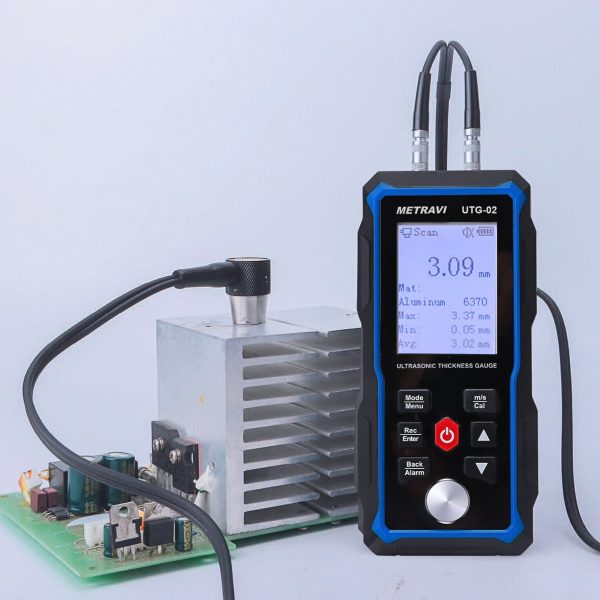

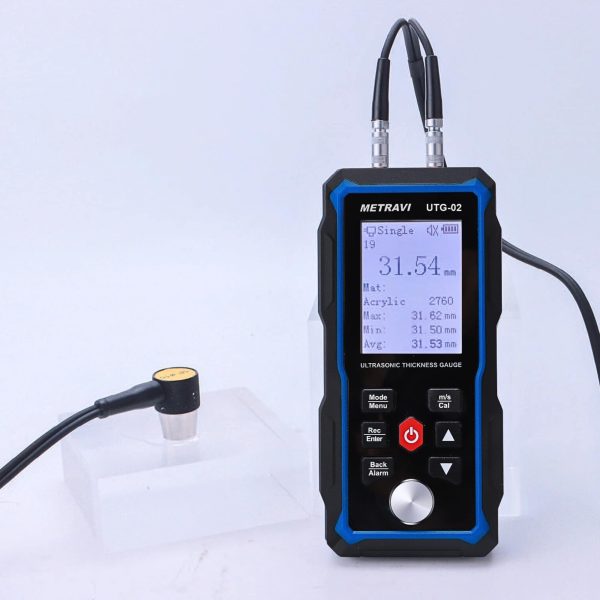

Based on the principle of ultrasonic measurement, it can measure the thickness and sound speed of metal and other materials. It can detect the thinning of pipes and pressure vessels after corrosion, and can make accurate measurements of plates and machined parts.
The gauge is widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and other fields.
Features:
• Easy to operate
• Measurement Modes: Single Point, Two Point, Multi-point, Continuous
• Selectable units: mm or in
• Single & Continuous measurements
• User-calibratable
• Rechargeable Battery
• Auto Power-off
• Max, Min, Avg values
• Internal Data Logging

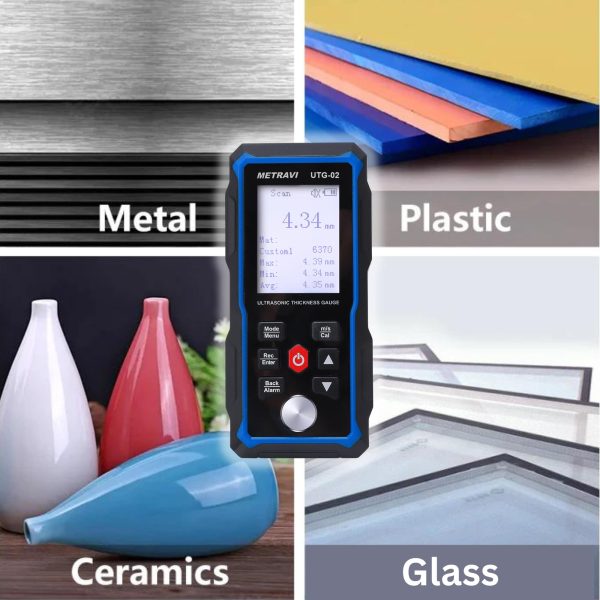

Applications for Metravi UTG-02 Ultrasound Thickness Gauge with Rechargeable Battery:
- Industrial Maintenance: Assess the wear and tear of pipelines, tanks, and structural components.
- Shipbuilding and Marine Industry: Inspect hull integrity and thickness of ship components.
- Aerospace: Monitor the thickness of aircraft components to ensure safety.

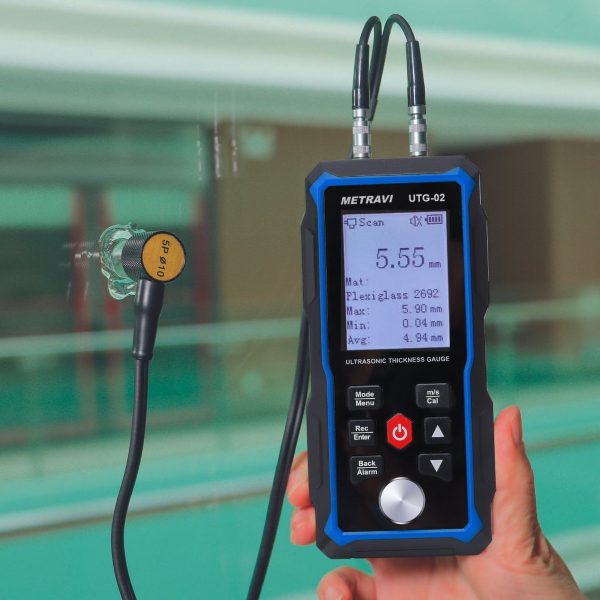

- Construction: Evaluate the thickness of building materials like glass and concrete.
- Quality Control: Ensure uniformity in material production processes.
- Automotive: Measure the thickness of vehicle parts like body panels and components.
Additional information
| Model | |
|---|---|
| Warranty | |
| Colour | |
| Brand | |
| Display | |
| Measurement Method | Single / Continuous |
| Measurement Range | 1.00~300.00mm |
| Sound Velocity Range | (1000～9999) m/s |
| Sensors | 5MHz Φ10 |
| probe | 0.1μm / 0.01mil |
| Measurement Units | 0.1mm/0.01mm/0.01in |
| Accuracy | ±(1%+0.1)mm, ±0.1mm, H<10mm, H≥10mm |
| Data Logging | |
| Alarms | |
| Battery Type | Lithium Battery |
| Charging System | built-in 3.7V 2000mAh, Rechargeable |
| Operating Time | About 16h with full charge, Type-C interface |
| Dimensions | 140×66×28.5mm |
| Accessories | carrying case, Coupling Agent, Data Cable, Probe, User Manual |
| Auto Power Off | |
| Frequency Range | |
| Low Battery Indication | |
| Power Source | Battery Operated |
| Battery Size | 3.7V 2200mAh Lithium Battery |
| Minimum Display Unit | 0.1 mm |
| Minimum Tube Measuring Limit | Φ20×3mm (steel) |
| Calibration | Auto Calibratable |
| No of Batteries | 1 |
- Display : 2.4″ Monochrome Dot Matrix Backlit Screen
- Measurement Method : Single / Continuous

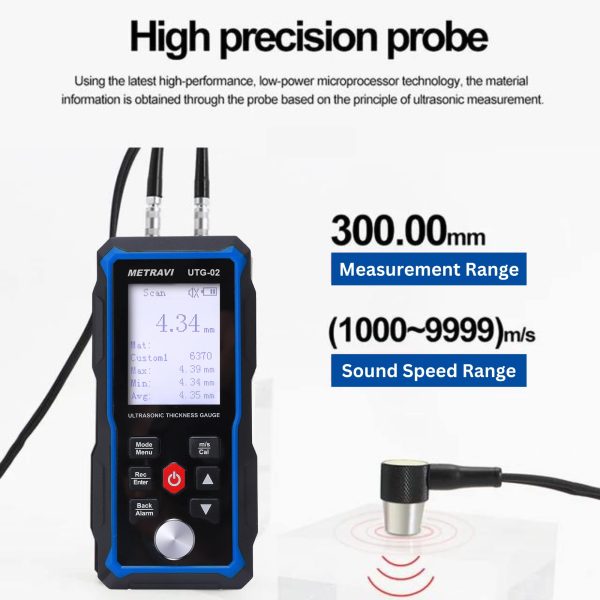

- Measurement Range : 1.00~300.00mm
- Sound Velocity : (1000～9999) m/s
- Range : 5MHz Φ10
- Probe : 0.1μm / 0.01mil
- Units : 0.1mm/0.01mm/0.01in
- Accuracy: : H<10mm, ±0.1mm; H≥10mm, ±(1%+0.1)mm; H is the actual thickness
- Data Logging : 300 groups, including material, sound, velocity, unit, measured value, MAX, MIN and AVG of each group on internal memory
- Audible Alarm
- Auto Calibration
- Battery: 2000mAh Lithium-ion Rechargeable Battery
- Charging with USB type C port

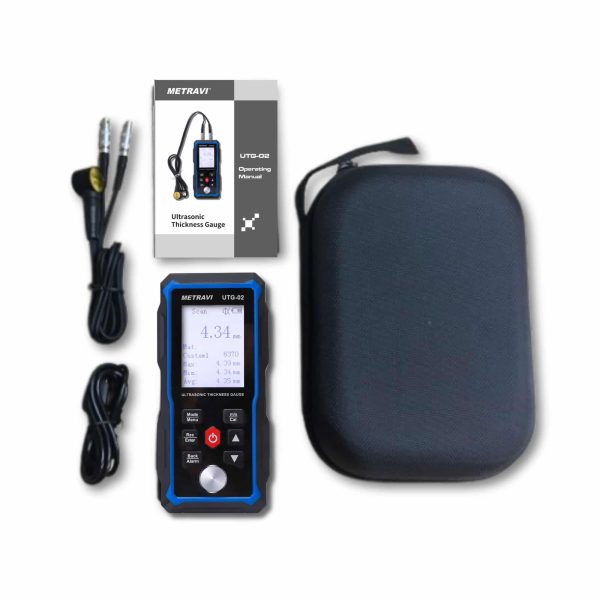

- Accessories: Probe, Coupling Agent, Carrying Case, Data Cable, User Manual
View Catalogue:Â Metravi UTG-02 Ultrasonic Thickness Gauge Catalogue July 2024
Be the first to review “UTG-02 Ultrasound Thickness Gauge with Rechargeable Battery”
You must be logged in to post a review.
You may also like…
- BEST SELLER

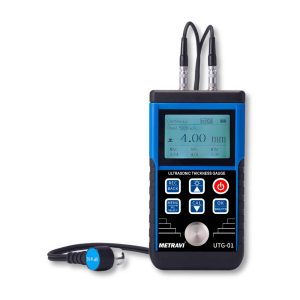

Thickness Gauge, Ultrasonic Thickness GaugeUTG-01 Ultrasonic Thickness Gauge
