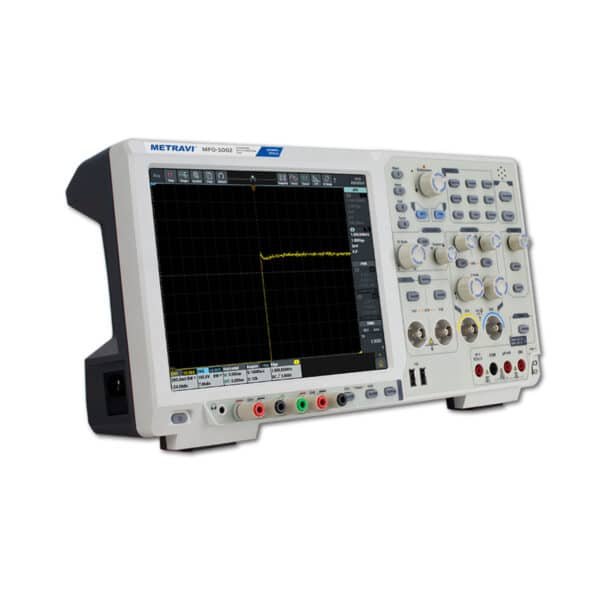

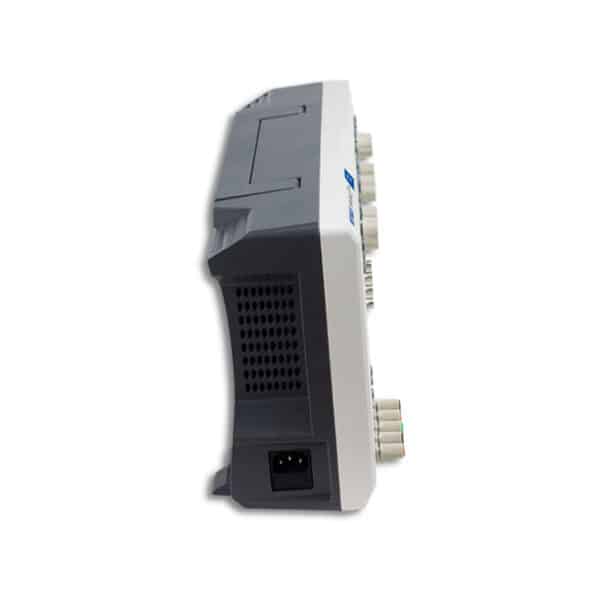

MFO-1002 Multifunction Oscilloscope
New Launch!!
DSO + Function Generator + Power Supply + Multimeter. Android based. 100MHz DSO, 2 channels, 500 MS/s. 50MHz Function Generator, 300M Sa/s. High precision Multimeter built-in for AC/DC Voltage, AC/DC Current, Frequency, Capacitance, resistance. Power Supply 15V/3A. Supports external HDMI display, mouse & keyboard. Supports configuring multi-media equipment, such as camera, microphone, speaker, headphone jack. USB host x4, USB device, LAN, HDMI. 10.4″ Touchscreen HD Display. Data Hold, REL measurements, Input Protection, Fan-cooling.
- Description
- Additional information
- SPECIFICATIONS
- CATALOGUE
- Reviews (0)
Description
New Launch!!
The Metravi MFO-1002 Multifunction Oscilloscope combines the capabilities of a DSO, Arbitrary Function Generator, Power Supply, and Digital Multimeter – all in one compact, versatile instrument.
Designed for engineers, educators, and researchers, this 4-in-1 powerhouse redefines multifunctional testing and analysis. With advanced trigger support including edge, slope, pulse width, window, interval, timeout, code type, Nth edge, video, and serial bus triggers, it ensures precise and flexible signal analysis. It also supports FRA chart testing for deeper insights.
Built on an Android-based platform, the Metravi MFO-1002 delivers a modern, intuitive experience with more possibilities for integration and usability.
Its 10.4-inch HD capacitive touch display offers crystal-clear visualisation, while support fo external HDMI display, mouse, and keyboard makes complex editing operations seamless.
Expand your teaching, training, and testing capabilities with multi-media integration – including camera, microphone, speakers, and headphones. With a rich set of interfaces (USB host x4, USB device, LAN, HDMI), connectivity and flexibility are built right in.
The Metravi MFO-1002 is more than just an oscilloscope – it’s a complete multifunction solution that saves bench space, enhances efficiency, and delivers unmatched versatility.
Features:
- DSO + Arbitrary Waveform Generator + Power Supply + Multi-meter. 4-in-1 Power Limitless Possibilities.
- Supports edge trigger, slope, pulse width, window, under amplitude, interval, timeout, code type, Nth edge, video trigger, serial bus trigger etc.
- Supports FRA chart testing
- Android based experience
- Supports external HDMI display, mouse and keyboard, facilitating complex editing operations
- Supports configuring multi-media equipment, such as camera, microphone, speaker an headphone jack, expand more teaching methods
- Rich interface: USB host x4, USB device, LAN, HDMI
- 10.4 inch capacitive touchscreen HD display
Additional information
| Brand | |
|---|---|
| Colour | |
| Model | |
| Warranty |
OSCILLOSCOPE
- Bandwidth:Rat 100 MHz
- Vertical Resolution: 8 bits
- Acquisition Mode: Normal, Peak detect, Averaging
- Real-time Acquisition Rate: Dual Channel; 8 bits; 500 MS/s
- Waveform Refresh Rate: 65,000 wfms/s
- Channels: 2
- Input Coupling: DC, AC, grounding
- Input Impedance: 1 MΩ±2%, parallel with 15 pF±5 pF
- Probe Attenuation Coefficient: 10uX-50kX,step by 1 – 2 – 5，supports custom
- Maximum Input Voltage: 1MΩ:≤300 Vrms
- Vertical Sensitivity: 1 mV/div～10 V/div
- DC Gain Accuracy: 8 bits mode; 1mV; 4%
- Trigger Types: Edge trigger, video trigger, pulse width trigger, slope trigger, under-amplitude trigger, over-amplitude trigger, timeout trigger, Nth edge trigger, logic trigger, RS232/UART, I2C, SPI, CAN and LIN
- Trigger Modes: Auto, Normal, Single
- Signal System and Line/Field Frequency (Video Trigger Mode): Supports NTSC, PAL and SECAM broadcasting system of any field frequency or line frequency
FUNCTION GENERATOR
- Bandwidth: 50MHz
- Sample Rate: 300M Sa/s
- Vertical Resolution: 14 bits
- Channels: 2
- Standard Waveforms: Sine wave, square wave, ramp wave, pulse wave, noise
- Arbitrary Waveforms: Exponential rise, Exponential decline, Sin(x)/x, Step Wave, noise etc. 28 build-in waveforms
- Amplitude Accuracy: ±(1% of setting + 1 mVpp)(typical 1kHz sine,0V offset)
- Amplitude Resolution: 1mVpp or 4 digits
- Offset Resolution: 1mVpp
- Output Impedance: 50Ω (typical)
MULTIMETER
- DC Voltage: 20.000 mV/200.00 mV/2.0000V/20.000V/200.00V/1000.0V
- Accuracy: ±(0.3%+5dig)
- AC Voltage: 20.000 mV/200.00 mV/2.0000V/20.000V/200.00V/750.0V
- Accuracy: ±(0.8%+10dig)
- DC Current: 200.00μA/2000.0μA/20.000mA/200.00mA/20.000A
- Accuracy: ±(0.5%+10dig)
- AC Current: 200.00μA/2000.0μA/20.000mA/200.00mA/20.000A
- Accuracy: ±(0.8%+10dig)
- Resistance: 200.00Ω / 2.0000kΩ / 20.000kΩ / 200.00kΩ / 2.0000MΩ / 20.000MΩ/100.00MΩ
- Accuracy: ±(0.8%+10dig)
- Capacitance: 2.0000nF / 20.000nF / 200.00nF / 2.0000μF / 20.000μF/200.00μF / 2.0000mF / 20.000mF
- Accuracy: ±(4%+10dig)
- Diodes Test
POWER SUPPLY
- Rated Voltage: 0.1～15V
- Rated Current: 0.1～3A
- Power: 15W
- Power Regulation: ≤0.1%+3mV / ≤0.1%+3mA
- Noise & Ripple:
- Voltage (Vp-p): ≤10mVp-p
- Voltage (rms): ≤2mV rms
- Current (rms): ≤5mA rms
- Protect Function:
- OVP: 0～16V
- OCP: 0～3.1A
GENERAL
- Display: 19999 Counts; 10.4″ Coloured TFT LCD; 1024×768 Pixels Multi-touch Capacitive Touchscreen
- Frequency Response: (40 – 1000) Hz
- Sampling Rate: 3 times/second
- Auto Ranging
- True Virtual Value
- On-off Buzzer
- Data Hold
- Relative Measurement
- Input Protection
- Input Impedance: ≥10 MΩ
- Communication Interface:
- HDMI USB dev*1
- USB Host *4
- Trig Out(P/F)
- EXT Trig In
- LAN interface
- Earphone jack
- Power Supply: 100V – 240 VACRMS, 50/60 Hz, CAT II
- Fuse: 2 A, T class, 250 V
- Cooling Method: Fan cooling
View Catalogue: Metravi MFO-1002 Multifunction Oscilloscope Catalogue New
