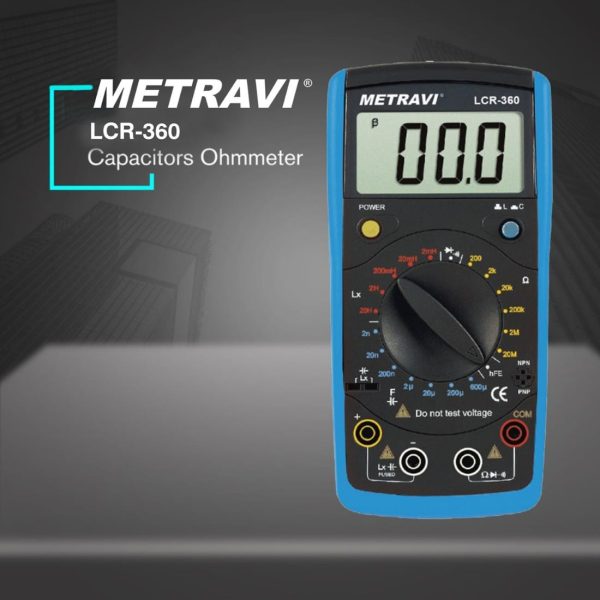

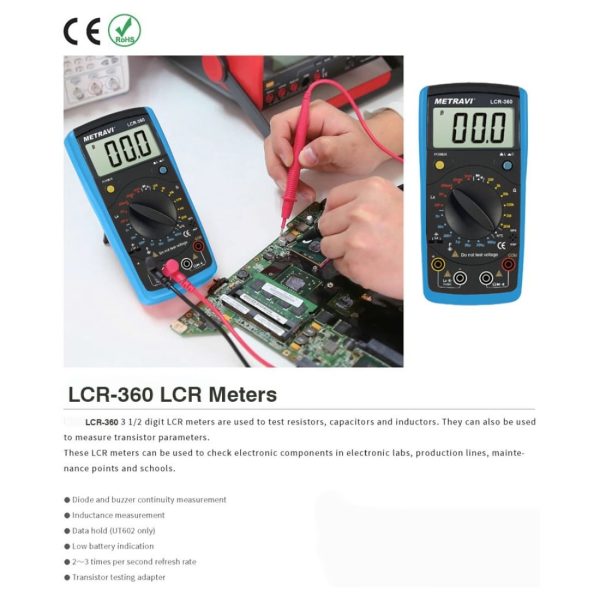

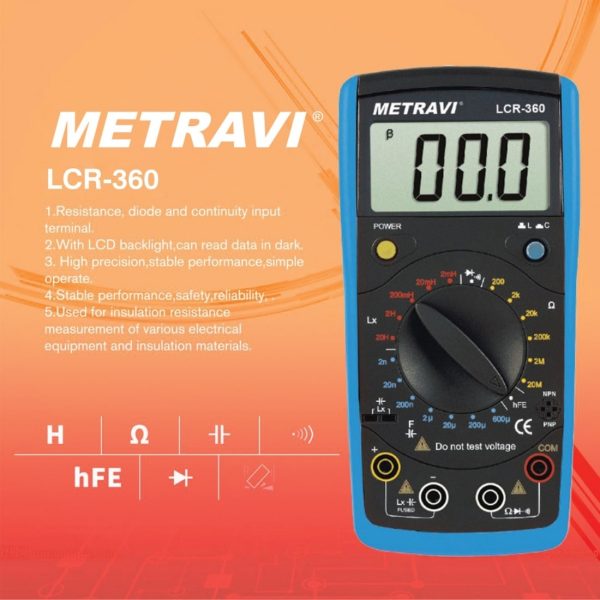

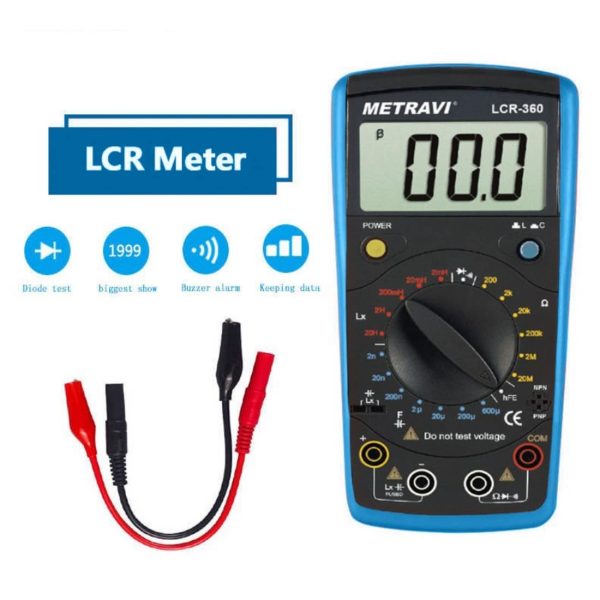

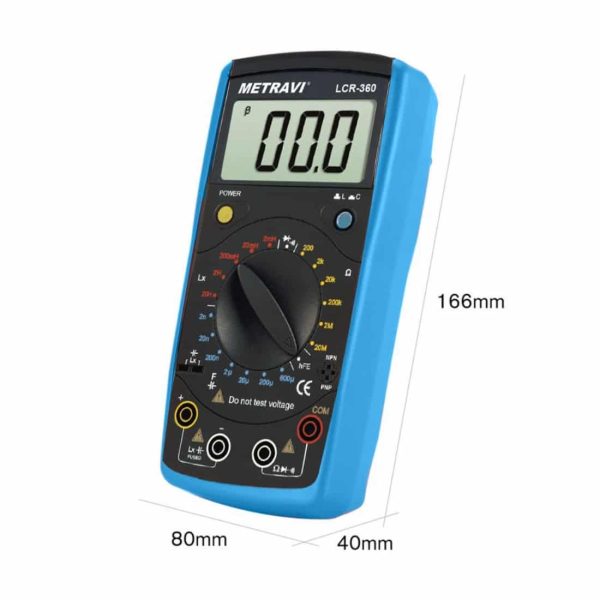

LCR-360 Digital Hand-held LCR Meter
₹6,012.00 including GST @18%

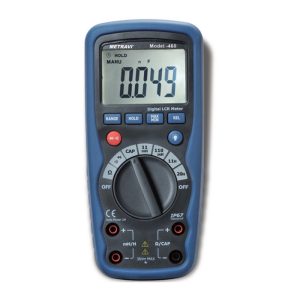

NOTE: THIS MODEL HAS BEEN DISCONTINUED. PLEASE CLICK HERE TO CHECK OUT THE 460 LCR METER FOR SIMILAR AND BETTER SPECIFICATIONS.
3-1/2 Digits Hand Held Digital LCR Meter, Measures Inductance from 0.001mH to 20H, Capacitance from 0.001nF to 600uF and Resistance from 0.1 to 20M.Ohms, with diode test, transistor test and audible continuity test, CE Approved.
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
NOTE: THIS MODEL HAS BEEN DISCONTINUED. PLEASE CLICK HERE TO CHECK OUT THE 460 LCR METER FOR SIMILAR AND BETTER SPECIFICATIONS.
3-1/2 Digits Hand Held Digital LCR Meter, Measures Inductance from 0.001mH to 20H, Capacitance from 0.001nF to 600uF and Resistance from 0.1 to 20M.Ohms, with diode test, transistor test and audible continuity test, CE Approved.
Additional information
| Model | |
|---|---|
| Brand | |
| Warranty | |
| Colour | |
| Display | |
| Auto Power Off | |
| Overload Indication | Overload Indication |
| Low Battery Indication | |
| Diode & Continuity | |
| Transistor Test | Transistor Test |
| Resistance Range | |
| Capacitance Range | |
| Inductance Range | 2mH to 20H |
| Accuracy | ±0.8% |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | 9V |
| No of Batteries | 1 |
| Sampling Time | 2-3 times / sec |
| Certifications |
- 3-1/2 Digits Large LCD Display
- Auto Power Off
- Over-Range Indication
- Low Battery Indication
- Resistance: 0 – 200 / 2k / 20k / 200k / 2M / 20MΩ.
- Accuracy: ±0.8%
- Capacitance: 0 – 2n / 20n / 200n / 2u / 20u / 200u / 600uF
- Accuracy: ±1%
- Inductance: 0 – 2m / 20m / 200m / 2 / 20H
- Accuracy: ±2%
- Transistor Test
- Diode Test
- Audible Continuity Test Facility
View Catalogue: Metravi LCR-360 Hand-held LCR Meter Catalogue
